HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0711008051k5

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove the heater hose.

am6zzw00016070

5.  Install in the reverse order of the removal.

6.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(2)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

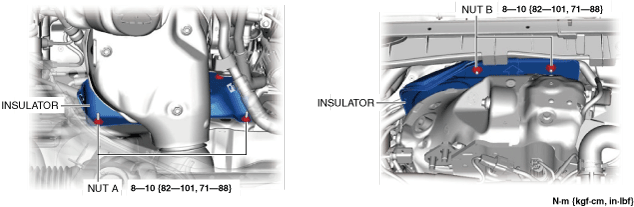

4.  Remove nuts A from underside of vehicle.

am6zzw00016071

5.  Remove nuts B from top side of vehicle.

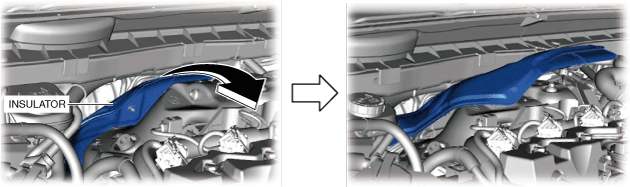

6.  Remove the insulator as shown in the figure.

am6zzw00016072

7.  Detach the clip.

am6zzw00016073

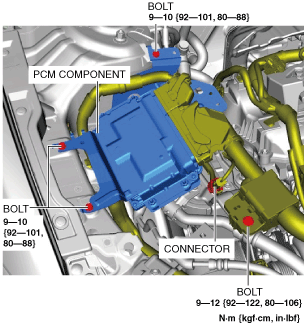

8.  Remove the bolt.

9.  Disconnect the engine ground.

10.  Disconnect the connector.

am6zzw00016074

11.  Remove the bolts.

12.  Set the PCM component out of the way.

13.  Detach the clips.

am6zzw00016075

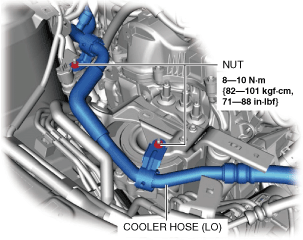

14.  Remove the nuts.

am6zzw00016076

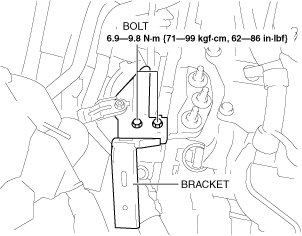

15.  Remove the bolt.

am6zzw00016077

16.  Remove the bracket.

17.  Set the cooler hose (LO) out of the way.

am6zzw00016078

Caution

•  When setting the cooler hose (LO), only bend the flexible hose part. If force is applied to areas other than the flexible hose, the pipe will bend and could be damaged.

18.  Remove the heater hose.

am6zzw00016079

19.  Install in the reverse order of the removal.

20.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)
