•  The ambient temperature sensor converts the detected air temperature to an electric signal.

•  A thermistor-type ambient temperature sensor has been adopted.

am6xun00003071

•  The ambient temperature sensor is located on the shroud panel on the back side of the front bumper.

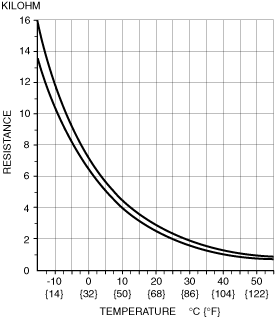

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and increases if the temperature decreases.

•  Not applicable
