AIR MIX ACTUATOR

id074000004700

Purpose

• The air mix actuator moves the air mix door in the A/C unit to adjust the temperature of the air blown from the air vent.

Function

Door open/close function

• The air mix actuator drives the motor based on the signals from the climate control unit and moves the air mix door in the HOT or COLD direction.

Door position detection function

• The air mix actuator detects the change in the air mix door position using the potentiometer in conjunction with the motor drive, and gives feedback to the climate control unit based on electric signals.

Structure/Construction

• A potentiometer-type air mix actuator has been adopted.

• The driver-side air mix actuator is located on the driver’s side of the A/C unit.

• The passenger-side air mix actuator is located on the passenger’s side of the A/C unit.

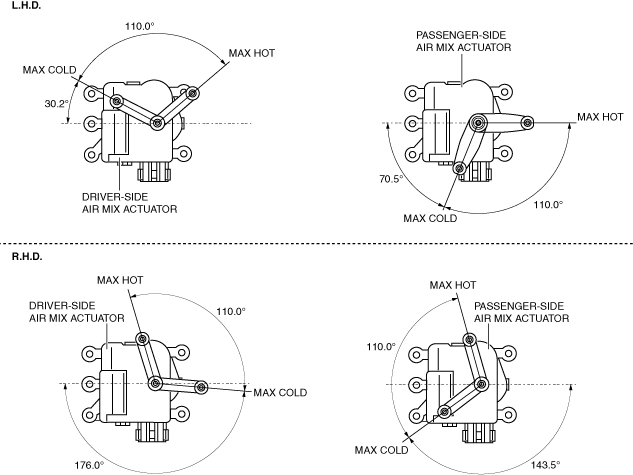

• The operation range of the air mix actuator is as indicated in the diagram.

am6zzn00005353

Operation

• For the air mix actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)

Fail-safe

• Not applicable
