FOREWORD [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)]

id0802g8080300

Note

• The SRS air bag system can be identified by whether or not the seat track position sensor is present.

― Standard deployment control system: Without seat track position sensor

― Two-step deployment control system: With seat track position sensor

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

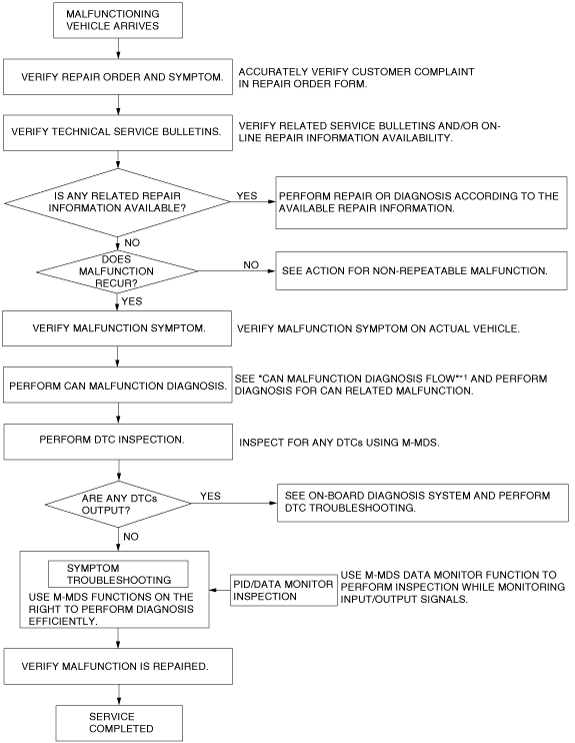

Troubleshooting Procedure

am3uuw00007780

*1 :CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (L.H.D.)], CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (R.H.D.)], CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (R.H.D.)], CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (R.H.D.)]

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Verify that a DTC has been recorded in the memory.

― Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

― Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.

ac5uuw00007565

― Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

• Tool used (Reference): terminal test kit (49US-15-1A0)

amxzzw00004455

Air Bag System Specification Identification

• Because two types of driver and passenger-side air bag module controls, “Two-step deployment control” and “Standard deployment control”, are available depending on when the vehicle was produced, identify the specification referring to the following identification.

Identification

• In this manual, “Two-step deployment control system” or “Standard deployment control system” is used if the service contents differ depending on the control.

• Control is identified by the following components.

×:Equipped

-:Not equipped

Item	Two-step deployment control system	Standard deployment control system
Sophisticated air bag sensor (SAS) control module	×	×
Crash zone sensor	×	×
Side air bag sensor	×	×
Pressure sensor	×	-
Driver-side air bag module	× (Two-step deployment type)	× (Standard deployment type)
Passenger-side air bag module	× (Standard deployment type)	× (Standard deployment type)
Side air bag module	×	×
Curtain air bag module	×	×
Pre-tensioner seat belt	×	×
Clock spring	× (Two-step deployment type)	× (Standard deployment type)
Occupant classification sensor	×	-
Occupancy sensor	-	×
Driver-side buckle switch	×	×
Passenger-side buckle switch	×	×
Air bag system warning light	×	×
PAD ON indicator	×	-
Driver-side seat position sensor	×	-
Rear seat mat sensor	×	-

Outline

• The OBD (on-board diagnostic) system has the following functions:

― Malfunction detection function: Detects malfunctions in the air bag system and outputs DTCs (Diagnostic Trouble Codes).

― PID/data monitor function: Reads out specific input/output signals and the system status.

• DTCs can be read/cleared using the M-MDS.

Note

• Use the M-MDS to verify DTCs because the DTCs displayed by the air bag system warning light are reference information only.
