AIR BAG SYSTEM WIRING DIAGRAM (SYMPTOM TROUBLESHOOTING) [AIR BAG SYSTEM]

id0803a3805300

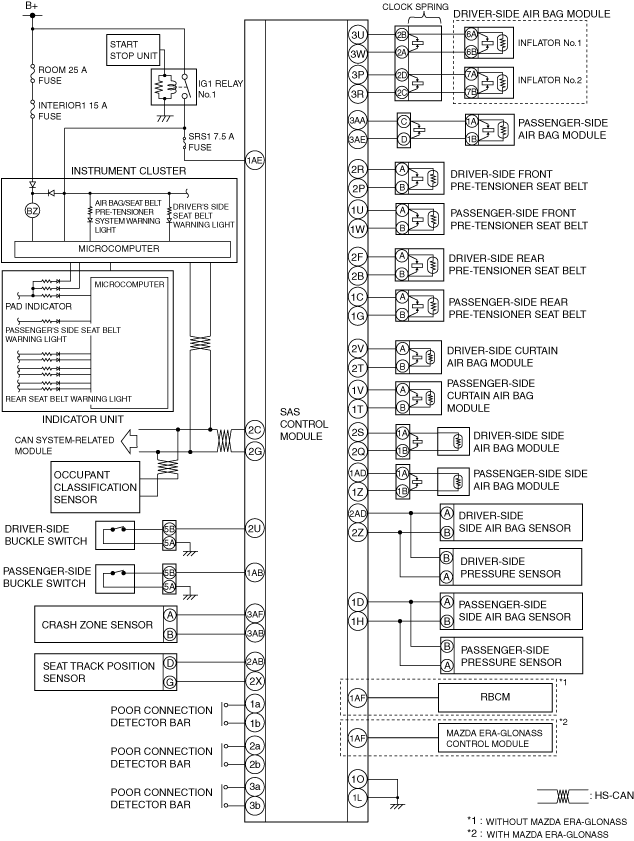

Two-step Deployment Control System

am6zzn00005360

am6zzw00014102

Standard Deployment Control System

am6zzn00005386

am6zzw00014102
