CURTAIN AIR BAG MODULE [STANDARD DEPLOYMENT CONTROL SYSTEM]
id0810b2500800
Purpose

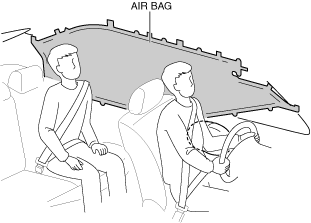

• When a curtain air bag module receives an impact from a lateral collision, the operation (deployment) of the air bag mediates the impact to the head of the driver and front passenger.
Function
• When a curtain air bag module receives an impact from a lateral collision, the air bag is operated (deployed) by the operation signal sent from the SAS control module.
Structure/Construction

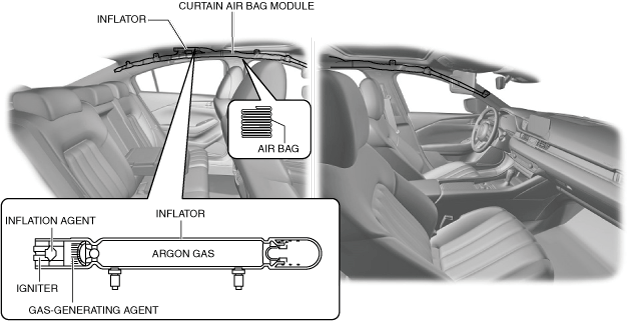

• The curtain air bag modules are located along the roof edge between the A and C pillars.
• The curtain air bag module consists of the inflator and air bag.
• The inflator consists of an igniter, inflation agent, gas-generating agent, and argon gas.
Operation
• The curtain air bag module operates (deploys) the air bag by activating the internal inflator.
• The inflator operates (deploys) in the following order:
-
1. When an operation (deployment) signal is received from the SAS control module, the igniter built into the inflator generates heat and ignites the inflation agent.
2. The combustion of the inflation agent causes the ignition of a gas-generating agent. The section of the wall from which the air bag deploys is broken by this impact wave.
3. The gas generated by the sealed argon gas and gas-generating agent is cooled at the filter and the filtrate is injected into the air bag.
4. When a curtain air bag operates (deploys), the A-pillar trim and headliner are spread apart by the compressed gas generated from the inflator, inflating the air bag.
Fail-safe
• Not applicable
