CLEARING DTC [AUDIO UNIT]

id09021q855600

Note

•  The audio system DTC can be verified using the on-board diagnostic test mode to activate the on-board diagnostic function by operating the audio unit.

•  Before clearing the memory, be sure to enter all of the DTCs displayed by the DTC inspection in the Audio Repair Order Form.

•  If an audio unit DTC is cleared, select For Audio below.

•  If a Bluetooth^® unit DTC is cleared, select For Bluetooth^® Unit below.

•  If a CD player DTC is cleared, select For CD Player below.

For Audio

1.  DTCs are displayed. (See DTC INSPECTION [AUDIO UNIT].)

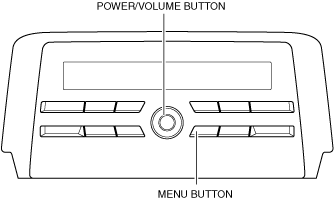

2.  While pressing the POWER/VOLUME button, press the MENU button for 3 s or more.

ac5uuw00007844

Note

•  After clearing the DTCs, "No Err" is displayed and a beep sounds.

3.  Switch the ignition off to end the on-board diagnostic test mode.

For Bluetooth^® Unit

1.  DTCs are displayed. (See DTC INSPECTION [AUDIO UNIT].)

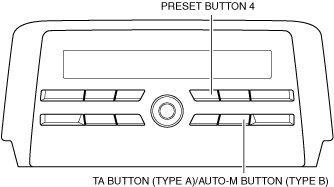

2.  While pressing the TA button (Type A)/AUTO-M button (Type B), press the PRESET button 4 for 3 s or more.

ac5wzw00009570

Note

•  After clearing, "No Err" is displayed.

3.  Switch the ignition off to end the on-board diagnostic test mode.

For CD Player

1.  DTCs are displayed. (See DTC INSPECTION [AUDIO UNIT].)

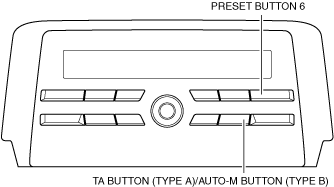

2.  While pressing the TA button (Type A)/AUTO-M button (Type B), press the PRESET button 6 for 3 s or more.

ac5wzw00009571

Note

•  After clearing the DTCs, "No Err" is displayed.

3.  Switch the ignition off to end the diagnostic assist function.
