DTC U3000:49 [START STOP UNIT]

id0902p6024800

Warning

• If this DTC is detected, the system will enter the fail-safe function to ensure safety. If a specified period of time has elapsed or the vehicle has been driven for a specified period of time or more while in fail-safe mode, the ignition will remain stuck in off and the engine cannot be started. Therefore, perform the malfunction diagnosis while the engine can be started. In addition, after having performed the malfunction diagnosis, verify that this DTC is not detected. If the DTC is not detected, the system returns to normal from the fail-safe function.

Note

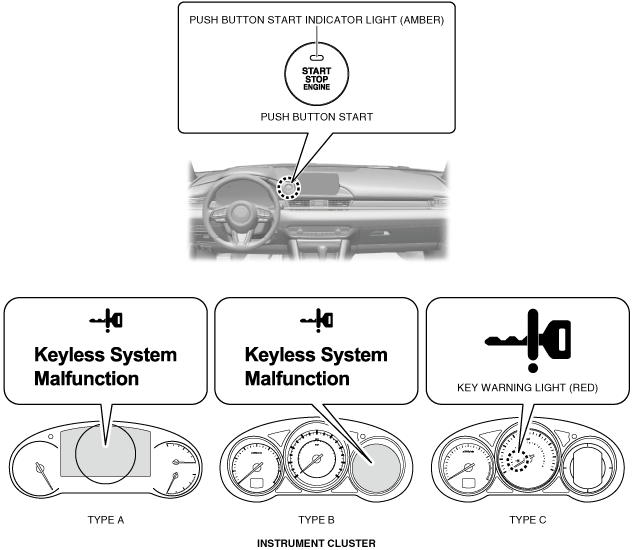

• If the vehicle is in the following condition while in fail-safe mode, “Keyless system malfunction” is displayed in the multi-information display (Instrument cluster (Type A or B))/the KEY warning light (red) illuminates (Instrument cluster (Type C)) and the push button start indicator light (amber) flashes.

― Switch the ignition to ACC or ON (engine off or on).

― Depress the brake pedal (ATX)/clutch pedal (MTX).

• In addition to the normal engine starting operation while cranking the engine in fail-safe mode, it is necessary to press the push button start.

am6zzw00017193

Description

Start stop unit internal malfunction

Detection condition

•  Start stop unit detects the internal malfunction.

Fail-safe

•  The system will enter the fail-safe function to ensure safety. If a specified period of time has elapsed or the vehicle has been driven for a specified period of time or more while in fail-safe mode, the ignition will remain stuck in off and the engine cannot be started.

Possible cause

•  Start stop unit internal malfunction

System wiring diagram

Not applicable

Description	Start stop unit internal malfunction
Detection condition	• Start stop unit detects the internal malfunction.
Fail-safe	• The system will enter the fail-safe function to ensure safety. If a specified period of time has elapsed or the vehicle has been driven for a specified period of time or more while in fail-safe mode, the ignition will remain stuck in off and the engine cannot be started.
Possible cause	• Start stop unit internal malfunction
System wiring diagram	Not applicable

Diagnostic Procedure

Step	Inspection		Action
1	PERFORM DTC INSPECTION AND VERIFY START STOP UNIT MALFUNCTION • Clear the DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT].) • Retrieve the start stop unit DTCs using the M-MDS. (See DTC INSPECTION [START STOP UNIT].) • Is the same Pending DTC present?	Yes	Replace the start stop unit, then go to the next step. (See START STOP UNIT REMOVAL/INSTALLATION.)
1		No	Go to the next step.
2	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [START STOP UNIT].)
2		No	DTC troubleshooting completed.
