SYSTEM WIRING DIAGRAM [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]]

SYSTEM WIRING DIAGRAM [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]]

id0903l8059900

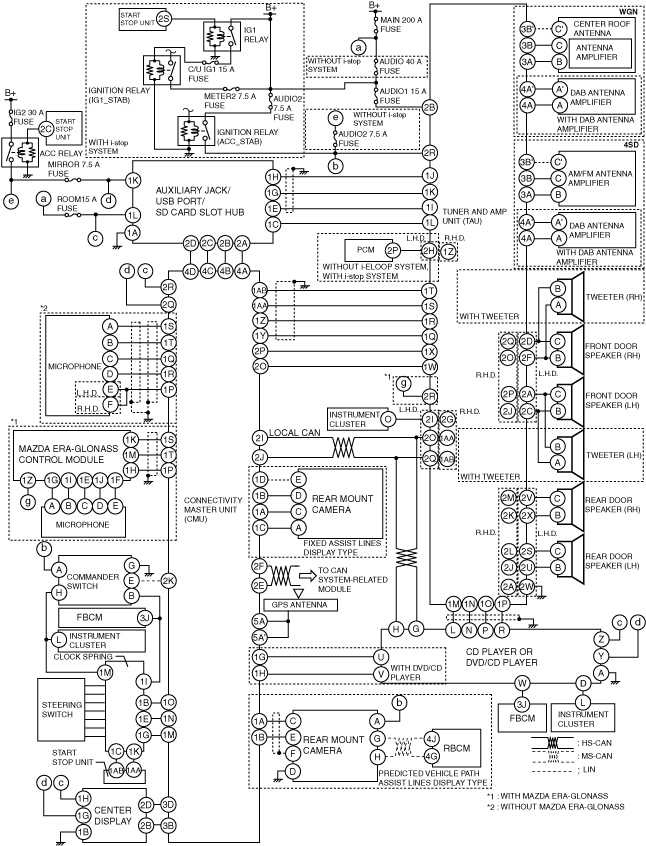

Without Bose^®

am6zzn00005153

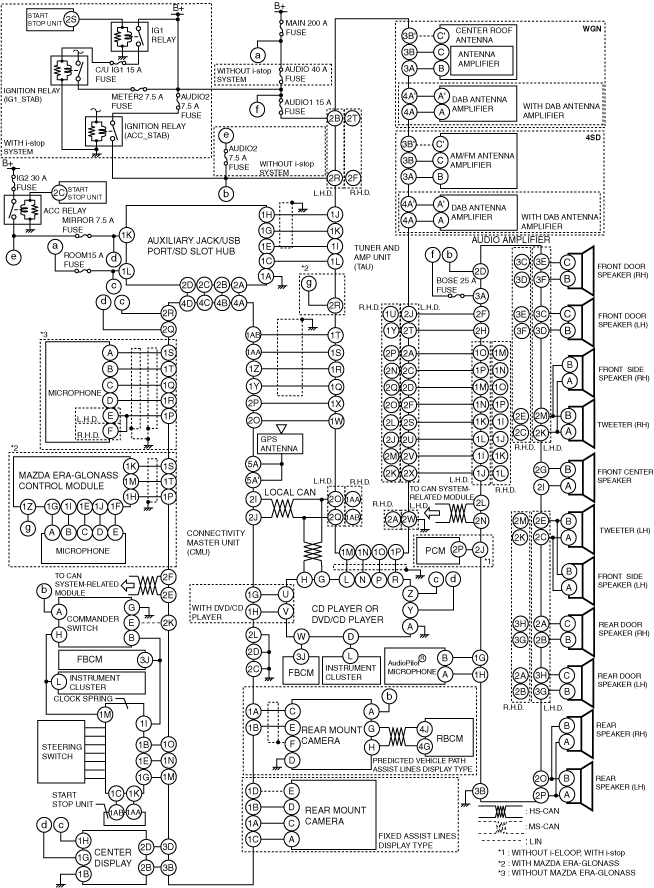

With Bose^®

am6zzn00005195
