FUEL-FILLER LID ADJUSTMENT

id091000800200

1. Verify that the gap and height difference between the fuel-filler lid and body.

2. Loosen the bolts and adjust the fuel-filler lid.

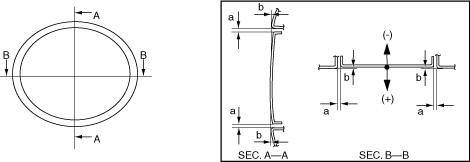

am6zzw00015701

Standard clearance

a: 2.0—4.0 mm {0.08—0.15 in}

b: -0.5—1.5 mm {-0.01—0.05 in}
