REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

4SD

1. Remove the rear ultrasonic sensor. (with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

2. Remove the rear ultrasonic sensor short-cord. (with parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

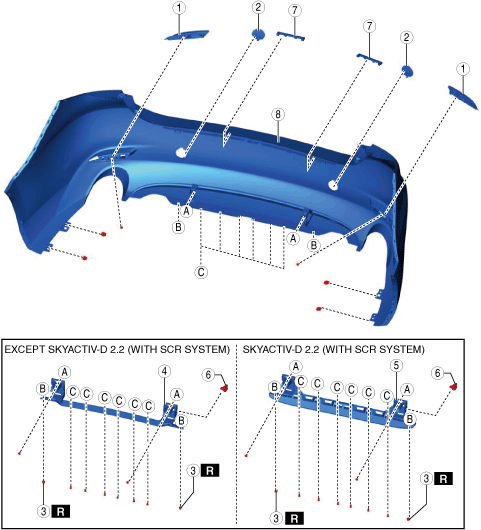

3. Disassemble in the order indicated in the table.

am6zzw00015705

1

Reflector

2

Towing hook cover

3

Rivet

(See Rivet Removal Note.)

4

Rear under cover (except SKYACTIV-D 2.2 (with SCR system))

5

Rear bumper guard (SKYACTIV-D 2.2 (with SCR system))

6

Wiring harness clip

7

Seal rubber

8

Rear bumper face

4. Assemble in the reverse order of disassembly.

WGN

1. Remove the rear ultrasonic sensor. (with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

2. Remove the rear ultrasonic sensor short-cord. (with parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

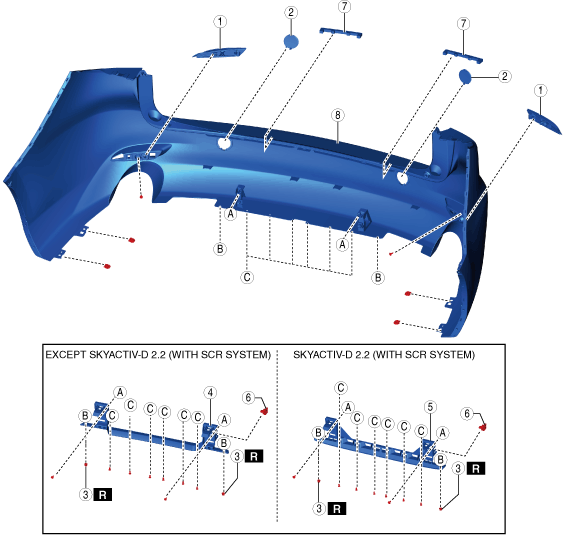

3. Disassemble in the order indicated in the table.

am6zzw00015706

4. Assemble in the reverse order of disassembly.

Rivet Removal Note

1. When removing the rivet, perform the following procedure:

(1) Secure the rivet pin from the rear bumper face inside using needle-nose pliers.

am6zzw00015707

(2) Use the following drill diameter.

Drill diameter:

4.1 mm {0.16 in}

Caution

• If an inappropriate drill diameter is used, the rear bumper face may be damaged.

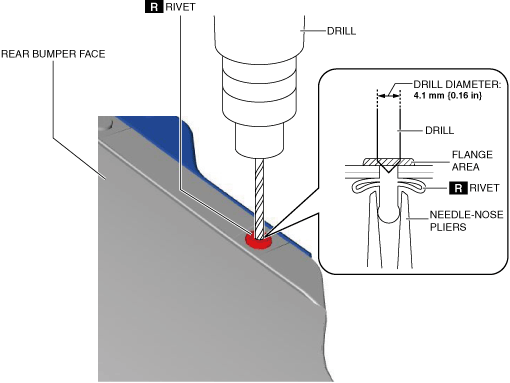

(3) Remove the rivet flange using a drill and remove the rivet.

am6zzw00015708

(4) Remove any rivet shavings from the rear bumper face.

1	Reflector
2	Towing hook cover
3	Rivet (See Rivet Removal Note.)
4	Rear under cover (except SKYACTIV-D 2.2 (with SCR system))
5	Rear bumper guard (SKYACTIV-D 2.2 (with SCR system))
6	Wiring harness clip
7	Seal rubber
8	Rear bumper face
