SET PLATE REMOVAL/INSTALLATION

id091000878900

1.  Remove the fasteners.

am6zzw00015770

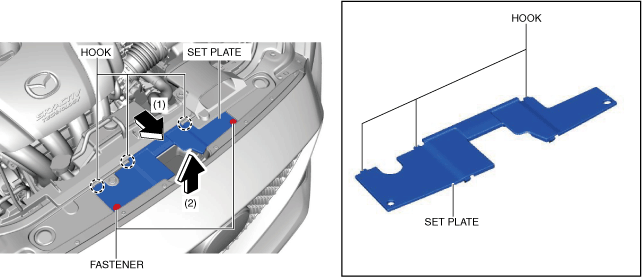

2.  Pull the set plate in the direction of the arrows in the order of (1), (2) and remove it while detaching the hooks.

3.  Install in the reverse order of removal.
