BONNET DISASSEMBLY/ASSEMBLY


id091000899800

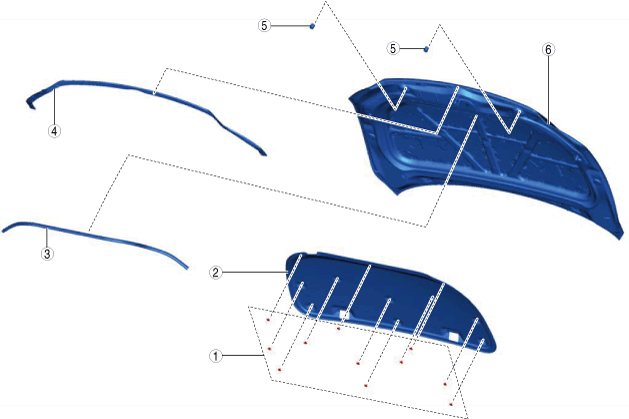

1.  Disassemble in the order indicated in the table.

am6zzw00015783

1
Fastener
2
Bonnet insulator
3
Shroud seaming welt
4
Weather strip parting seal
5
Stopper rubber
6
Bonnet component

2.  Assemble in the reverse order of disassembly.
