FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

id091200001100

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

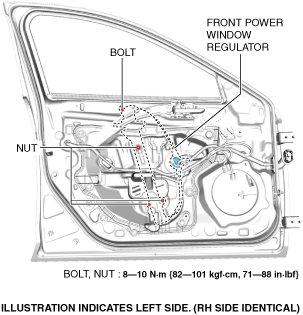

4.  Remove the bolt.

am6xuw00011560

5.  Remove the nuts.

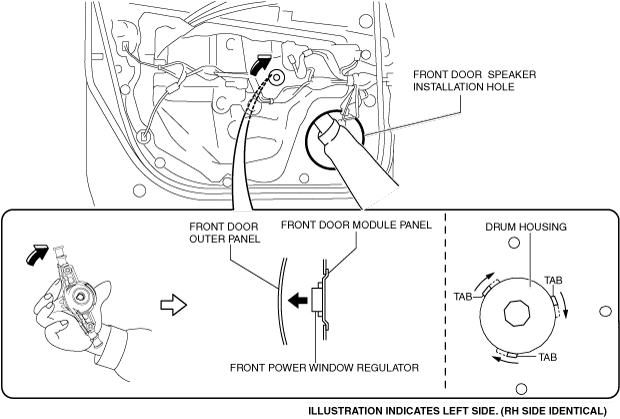

6.  Insert a hand through front door speaker installation hole, rotate the drum housing in the direction of the arrow shown in the figure to detach the tabs from the front door module panel.

am6xuw00011561

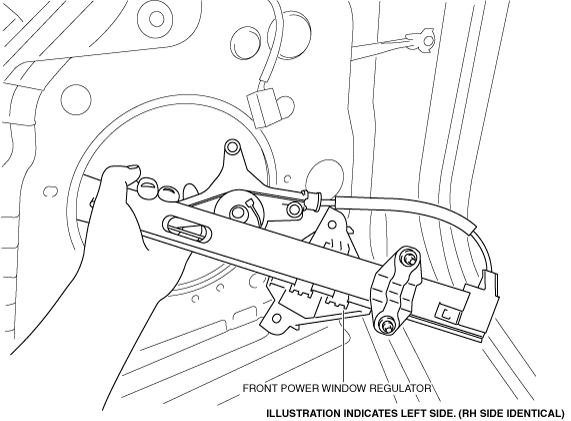

7.  Remove the front power window regulator through the front door speaker installation hole.

Caution

•  When removing the front power window regulator, the front power window regulator may contact the front door speaker installation hole, and the coating film of the front door inner panel and the front power window regulator could be damaged. Remove the front power window regulator while verifying that the front power window regulator and the front door speaker installation hole do not contact each other.

am6xuw00011562

8.  Install in the reverse order of removal.
