POWER OUTER MIRROR INSPECTION

id091200002700


Mirror Glass Adjustment, Retract/Return

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.

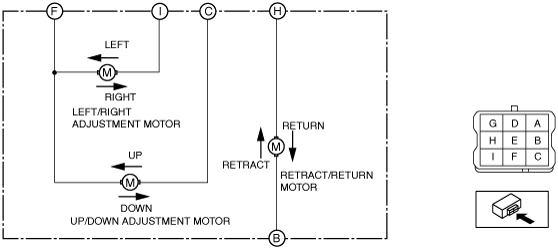

ac5wzw00001248

•  If the power outer mirror does not operate as indicated in the table, replace the power outer mirror.

Mirror operation direction

Battery positive voltage connect terminal

Ground connect terminal
Up
C
F
Down
F
C
Left
I
F
Right
F
I
Retract
B
H
Return
H
B


Heated Outer Mirror Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

3.  Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.

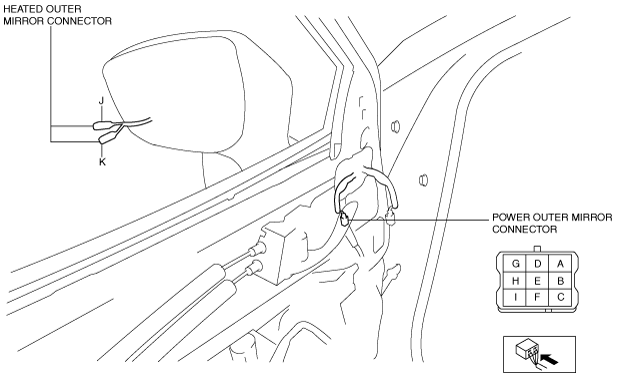

am6zzw00011646

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

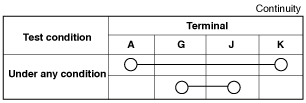

am6zzw00011647


BSM Warning Light Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

3.  Verify that the continuity between BSM warning light connector terminals is as indicated in the table.

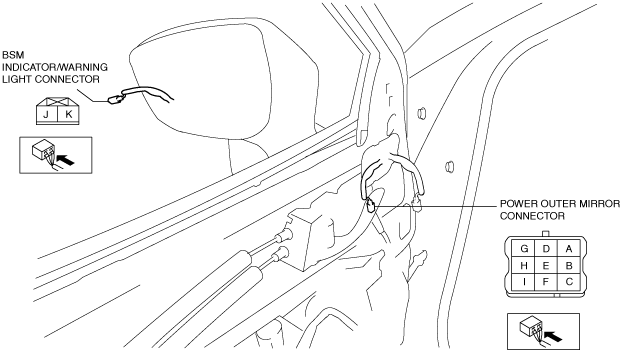

am6zzw00014499

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

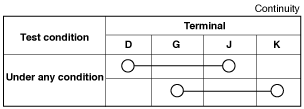

am6zzw00012724
