OUTER MIRROR GLASS REMOVAL

id091200002800

Note

•  Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx. 50°C {90°F} to 60°{108°F} degrees using a heat gun.

•  Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

am6xuw00011690

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

am6xuw00011691

3.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

am6xuw00011692

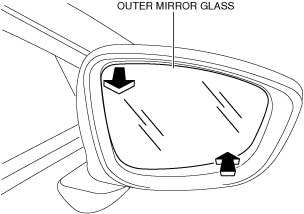

4.  Move the outer mirror glass in the direction of the arrows shown in the figure to secure a space for inserting your fingers.

am6xuw00011693

5.  Insert your fingers into the location shown in the figure, move the outer mirror glass in the direction of the arrow, and using the projection as the fulcrum point, disengage the pin.

Caution

•  When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.

am6xuw00011694

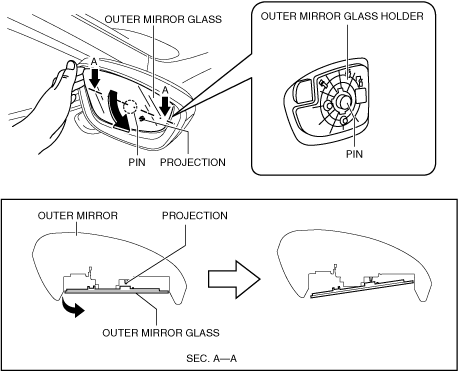

6.  Insert your fingers behind the glass in the same manner as Step 5 and disengage the remaining pins A and B.

am6xuw00007856

7.  Remove the wiring harness for hooks.

am6xuw00011695

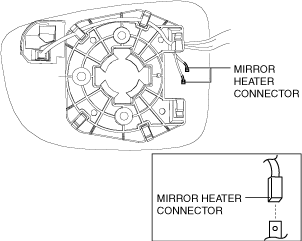

8.  Disconnect the mirror heater connectors. (with heated outer mirror)

am6xuw00011696

9.  Disconnect the auto-dimming outer mirror connector. (with auto-dimming outer mirror)

am6xuw00011697

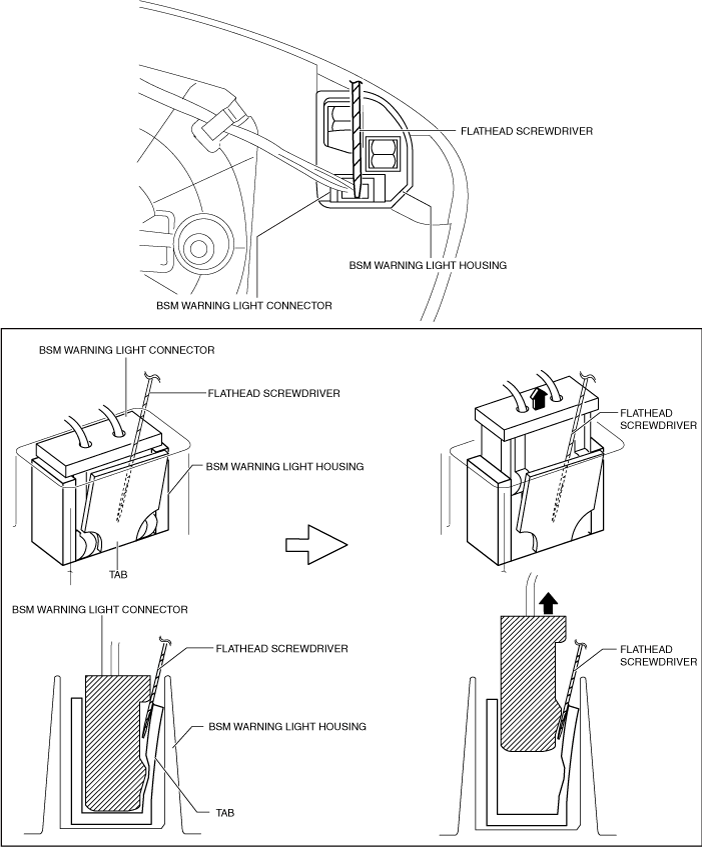

10.  Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the blind spot monitoring (BSM) warning light connector. (with blind spot monitoring system)

Caution

•  The connector can be easily deformed, therefore do not apply excessive force.

am6xuw00011698

11.  Remove the mirror glass holder and the outer mirror glass as a single unit.
