POWER OUTER MIRROR

id091200013600

Purpose

• The power outer mirror moves the outer mirror glass in the up/down and left/right directions using the up/down adjustment motor and left/right adjustment motor.

• The power outer mirror moves the outer mirror in the retract/return directions using the retract/return motor. (With retractable outer mirror)

Function

• The up/down adjustment motor and left/right adjustment motor turn clockwise (down/right direction) or counterclockwise (up/left direction).

• The retract/return motor turns clockwise (retract direction) or counterclockwise (return direction). (With retractable outer mirror)

Construction

• The up/down adjustment motor and left/right adjustment motor are located on the outer mirror glass.

• The retract/return motor is located inside the power outer mirror. (With retractable outer mirror)

am6zzn00005241

Operation

Up/down adjustment motor (Example: operating outer mirror glass upward)

1. When the motor rotates counterclockwise, the rib projects (1).

2. The rib pushes up the outer mirror glass and the outer mirror glass operates upward (2).

ac5uun00004082

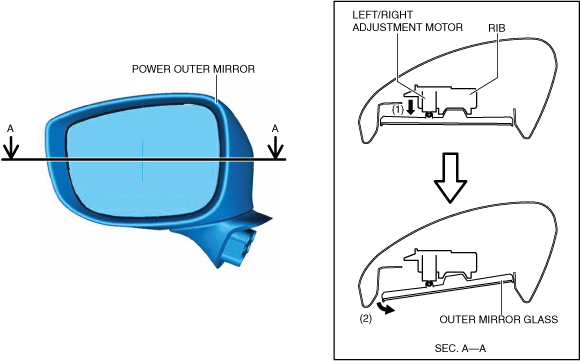

Left/right adjustment motor (Example: Operating outer mirror glass in right direction)

1. When the motor rotates clockwise, the rib projects (1).

2. The rib pushes up the outer mirror glass and the outer mirror glass operates in the right direction (2).

ac5uun00004083

Retract/return motor (With retractable outer mirror) (Example: retract operation)

1. When the motor rotates clockwise (1), the outer mirror operates in retract direction (2).

ac5uun00004084

Fail-safe

• Not applicable
