SENSOR COVER REMOVAL/INSTALLATION

id091200025000

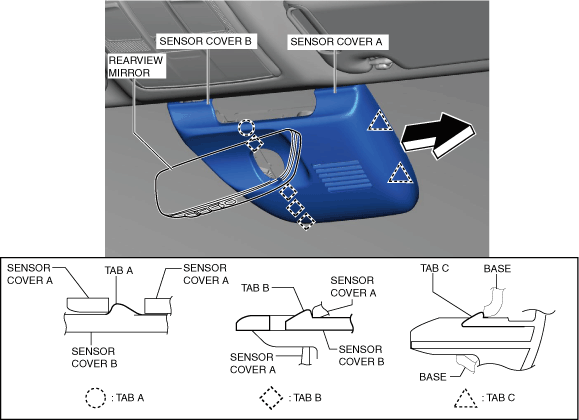

1.  Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and C, and remove sensor cover A from the base.

am6xuw00011655

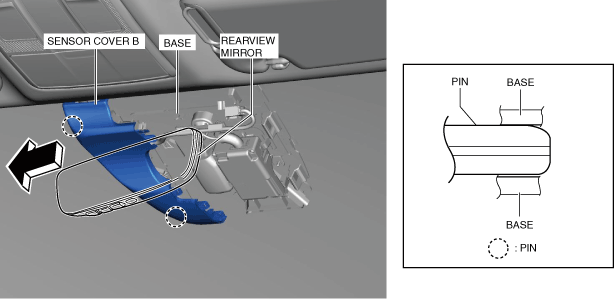

2.  Pull sensor cover B in the direction of the arrow shown in the figure, detach the pins and remove sensor cover B from the base.

am6xuw00011656

3.  Install in the reverse order of removal.
