REAR SEAT WARMER SWITCH REMOVAL/INSTALLATION

id091300701600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

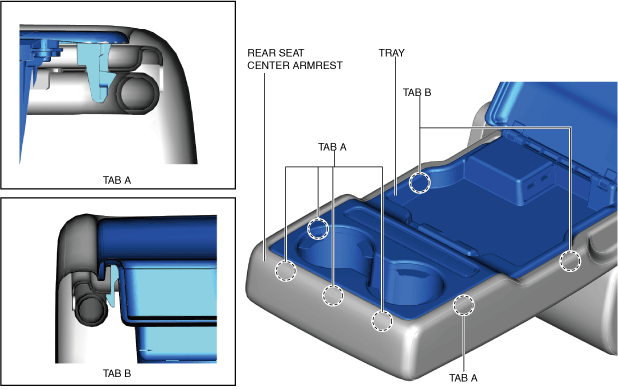

2.  Remove the tab A and B.

ac5uuw00007304

3.  Disconnet the connector.

ac5uuw00007367

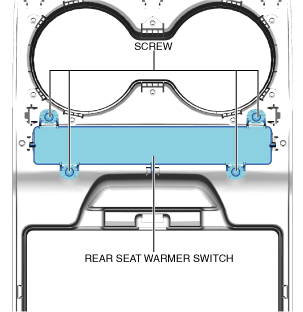

4.  Remove the screws.

ac5uuw00007368

5.  Remove the rear seat warmer switch.

6.  Install in the reverse order of removal.
