REAR SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION

id091300701800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Fold the rear seat back.

3.  Partially peel back the trunk covering.

4.  Disconnect the connectors.

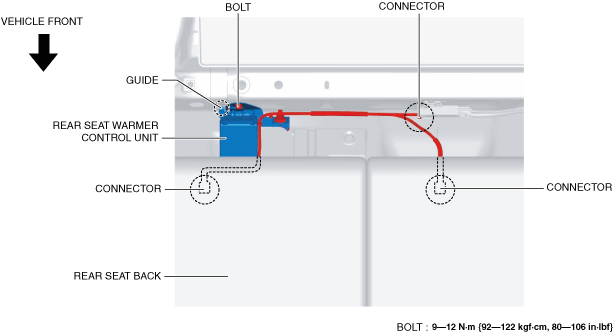

am6xuw00011926

5.  Remove the bolt.

6.  While detaching the guide from the body, remove the rear seat warmer control unit.

7.  Install in the reverse order of removal.
