POSITION MEMORY SWITCH REMOVAL/INSTALLATION

id091300989300

Warning

•  Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

1.  Switch the ignition OFF (LOCK).

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

4.  Move the tab in the order of arrows (1) and (2) shown in the figure and remove the front seat center cover.

am6zzw00018458

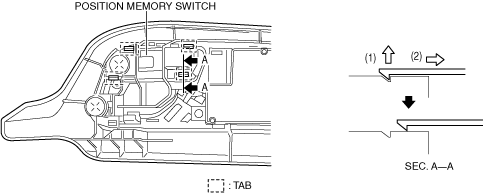

5.  Move the tab in the order of arrows (1) and (2) shown in the figure and detach the front seat side cover tabs from the position memory switch.

am6zzw00018459

6.  Remove the position memory switch.

7.  Install in the reverse order of removal.
