REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400511700

1.  Fully lower the rear door glass.

2.  Operate the door lock actuator using the following procedure and deplete the energy stored in the backup power supply.

Note

•  If the energy stored in the backup power supply has already been depleted, the door lock actuator does not operate. As this does not indicate an improper procedure, continue to perform the procedure as indicated.

(1)  Remove the D.LOCK 25A fuse.

(2)  Close the front door (driver's side)

(3)  Repeat the lock/unlock operation of the door lock switch (driver's side) until all the door lock knobs do not move. (With door lock switch)

(4)  Repeat the lock/unlock operation of the door lock knob (driver's side) until the door lock knobs other than the driver's seat do not move. (Without door lock switch)

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Glass guide (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

(5)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

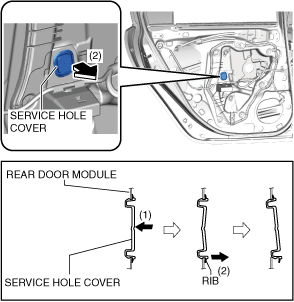

5.  Press the center of the service hole cover in the direction of arrow (1) shown in the figure.

am6xuw00009283

6.  Remove the service hole cover by holding its rib and partially peeling it back in the direction of arrow (2) shown in the figure.

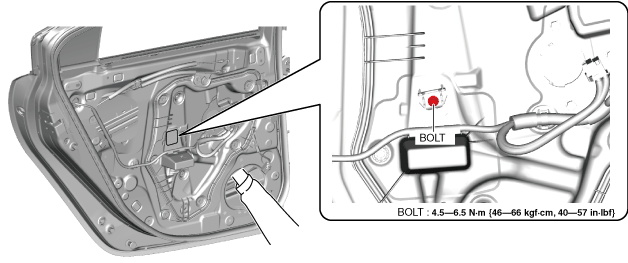

7.  Remove the bolt.

Caution

•  If the bolts are removed without supporting the rear door glass, the rear door glass may fall off and be damaged. Remove the bolts while inserting your hand into the rear door speaker installation hole to support the rear door glass.

am6xuw00009284

8.  Raise the rear door glass to a position allowing removal of the rear door latch and lock actuator.

am6xuw00009285

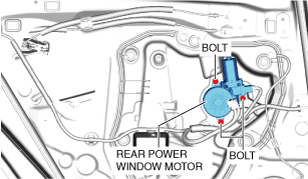

9.  Temporarily install the rear power window motor.

am6xuw00009286

10.  Disconnect the connector.

am6xuw00009287

11.  Remove the door lock knob cable and the inner handle cable from the clip. (See Inner handle cable installation note.)

12.  Remove the screws.

am6xuw00009288

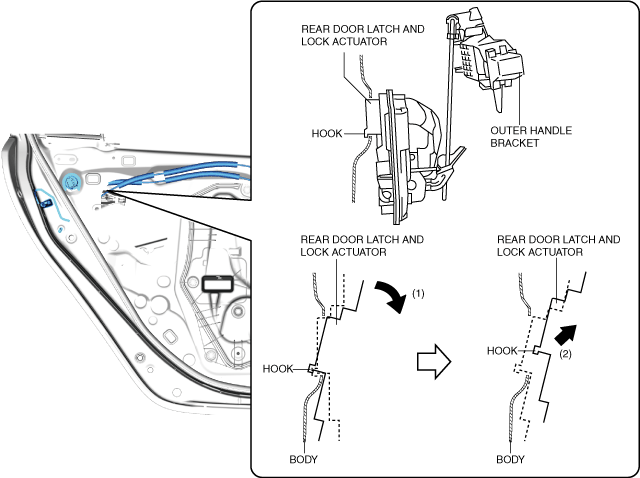

13.  Tilt the rear door latch and lock actuator in the direction of arrow (1) shown in the figure and lift it in the direction of arrow (2) to detach the hook of the rear door latch and lock actuator.

am6xuw00009289

14.  Move the rear door latch and lock actuator down in the direction of arrow shown in the figure to remove the rod from the rod holder.

am6xuw00009290

15.  Remove the rear door latch and lock actuator.

16.  Install in the reverse order of removal.

Inner handle cable installation note

•  When installing the inner handle cable, install it so that it is further in towards the inner side of the vehicle than the door lock knob cable.

am6zzw00016839
