TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION

id091400513700

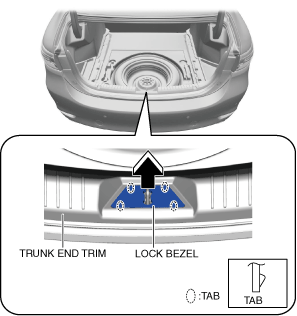

1.  Remove the lock bezel in the direction of the arrow shown in the figure while detaching tabs.

am6zzw00015674

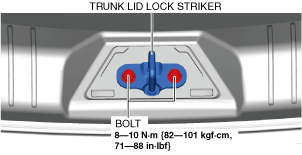

2.  Remove the bolts, then remove the trunk lid lock striker. (see Trunk Lid Lock Striker Installation Note.)

am6xuw00009292

3.  Install in the reverse order of removal.

Trunk Lid Lock Striker Installation Note

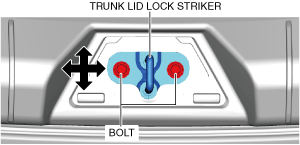

•  Refer to [TRUNK LID ADJUSTMENT] and adjust the trunk lid lock striker so that the height difference and gap of the trunk lid is within the specification. (See TRUNK LID ADJUSTMENT.)

am6xuw00009293
