AERODYNAMIC

id091600010400

Purpose/Function

• For improved aerodynamics, under covers are installed to the under-surface of the vehicle.

am6zzn00005833

Construction

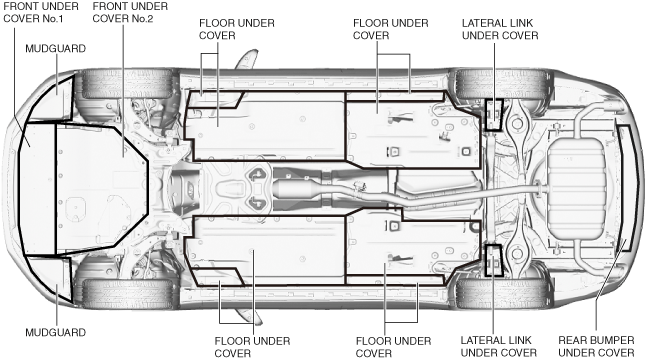

• The following 6 types of undercovers are equipped.

― Front under cover No.1

― Front under cover No.2

― Floor under cover

― Lateral link under cover

― Rear bumper under cover

― Mudguard

am6zzn00005834

Fail-safe

• Function not equipped.
