SAIL GARNISH REMOVAL/INSTALLATION
id091600451200
1. Open the front door.

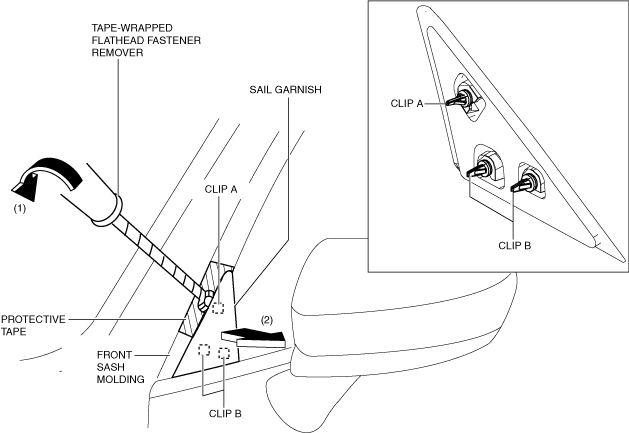

2. Affix protective tape to the position shown in the figure.
am6zzw00015819
|
3. Insert a tape-wrapped flathead fastener remover into the position shown in the figure, move it in the direction ofarrow (1), and detach clip A.
4. Pull the sail garnish in the direction of the arrow (2) and remove it while detaching clips B.
5. Install in the reverse order of removal.
