FRONT FENDER MOLDING REMOVAL/INSTALLATION

id091600802100

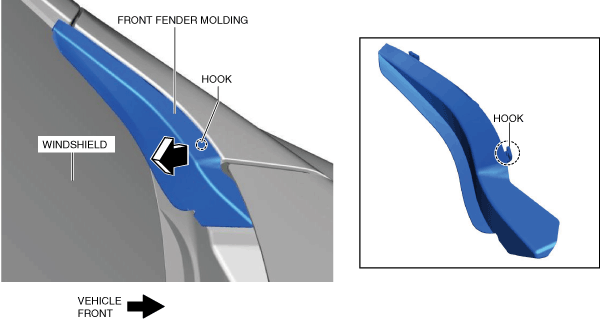

1.  Pull the front fender molding in the direction of the arrow while detaching the hook.

am6zzw00015849

2.  Pull the front fender molding in the direction of the arrow while detaching the hook.

am6zzw00015850

3.  Pull the front fender molding in the direction of the arrow and remove it while detaching the tab and the boss.

am6zzw00015851

4.  Remove the front fender molding.

5.  Install in the reverse order of removal.
