Caution

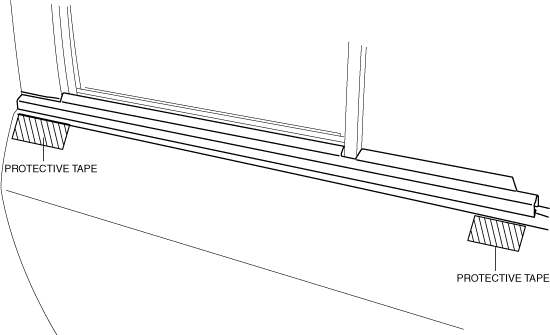

• Affix protective tape to the position shown in the figure.
am6zzw00015890
|
REAR BELTLINE MOLDING REMOVAL/INSTALLATION
id091600804700
am6zzw00015890
|
1. Fully open the rear door glass.

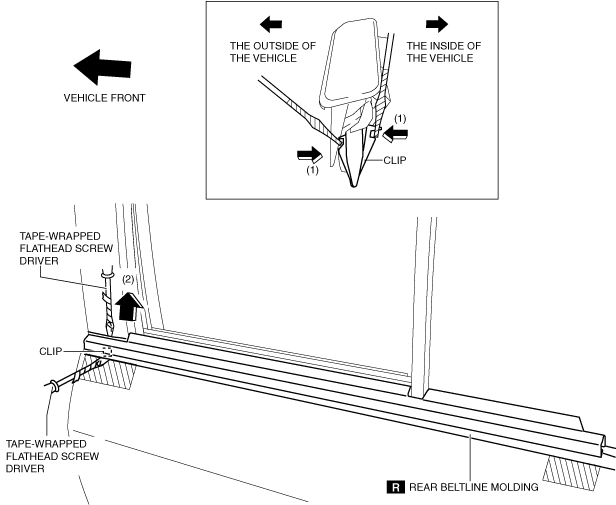

2. Insert a tape-wrapped flathead screwdriver and detach the clip in the direction of arrows (1) shown in the figure.
am6zzw00015891
|
3. Pull up the rear belt line molding in the direction of arrow (2) shown in the figure.

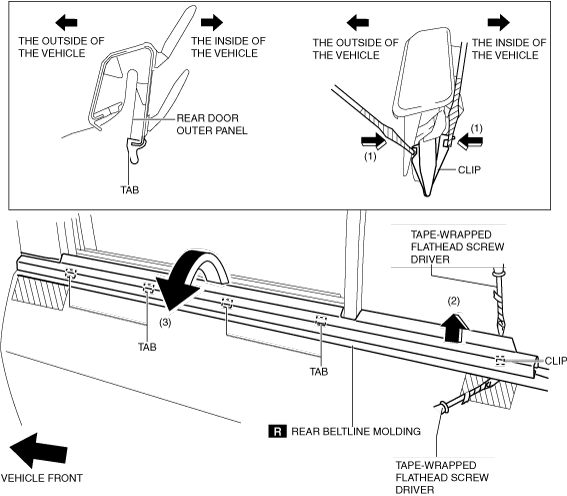

4. Insert a tape-wrapped flathead screwdriver and then detach the clip in the direction of arrows (1) shown in the figure.
am6zzw00015892
|
5. Pull up the rear side of rear beltline molding in the direction of arrow (2) shown in the figure.
6. Rotate the rear beltline molding in the direction of arrow (3) shown in the figure and remove it while detaching the tabs.
7. Install in the reverse order of removal.
