Caution

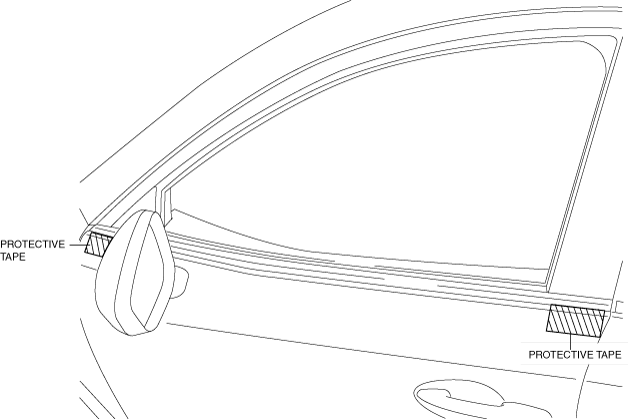

• Affix protective tape to the position shown in the figure.
am6zzw00015852
|
FRONT BELTLINE MOLDING REMOVAL/INSTALLATION
id091600804800
am6zzw00015852
|
1. Fully open the front door glass.

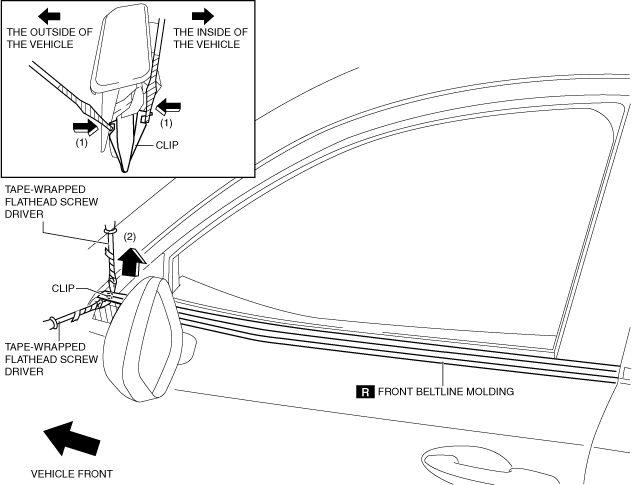

2. Insert a tape-wrapped flathead screwdriver and then detach the clip in the direction of arrows (1) shown in the figure.
am6zzw00015853
|
3. Pull up the front side of front beltline molding in the direction of arrow (2) shown in the figure.

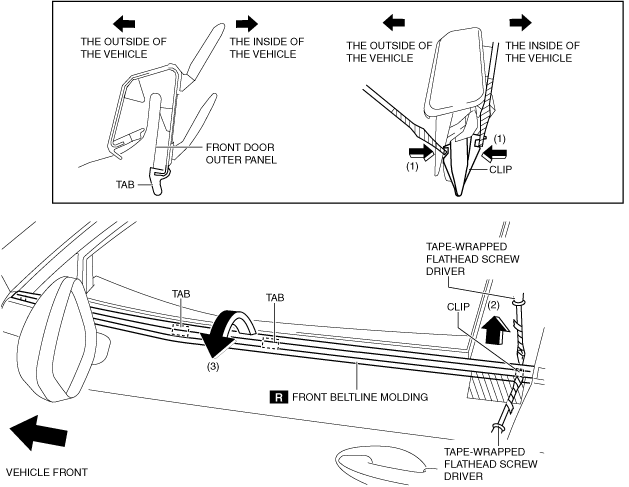

4. Insert a tape-wrapped flathead screwdriver and then detach the clip in the direction of arrows (1) shown in the figure.
am6zzw00015854
|
5. Pull up the rear side of the front beltline molding in the direction of arrow (2) shown in the figure.
6. Rotate the front beltline molding in the direction of arrow (3) shown in the figure and remove it while detaching the tabs.
7. Install in the reverse order of removal.
