DOOR SASH FILM REMOVAL

id091600805200

Front Door Sash Film

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(4)  Front door weatherstrip

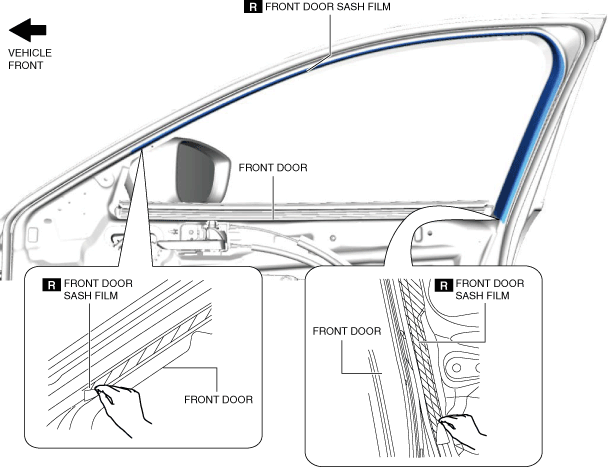

4.  Peel off the front door sash film by pulling it outward from one end.

am6zzw00015857

Rear Door Sash Film

1.  Fully open the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

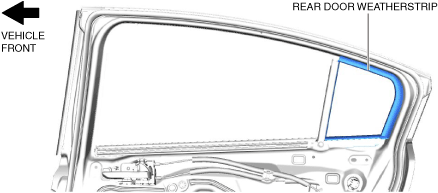

4.  Remove the rear door weatherstrip.

am6zzw00015858

5.  Peel off the rear door sash film by pulling it outward from one end.

am6zzw00015859
