FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

Floor Under Cover No.1

1.  Remove the floor under cover No.3. (See Floor Under Cover No.3.)

2.  Lift up the vehicle.

3.  Remove the bolts.

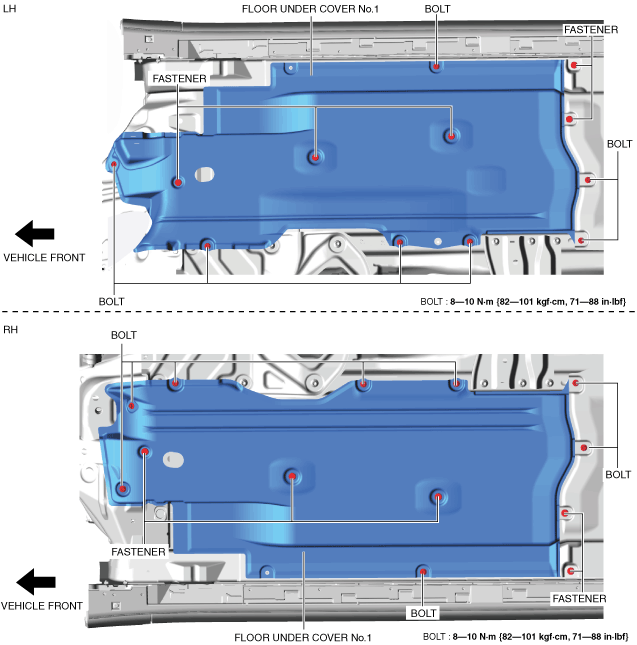

am6zzw00018059

4.  Remove the fasteners.

5.  Remove the floor under cover No.1.

6.  Install in the reverse order of removal.

Floor Under Cover No.2

1.  Lift up the vehicle.

2.  Remove the bolts.

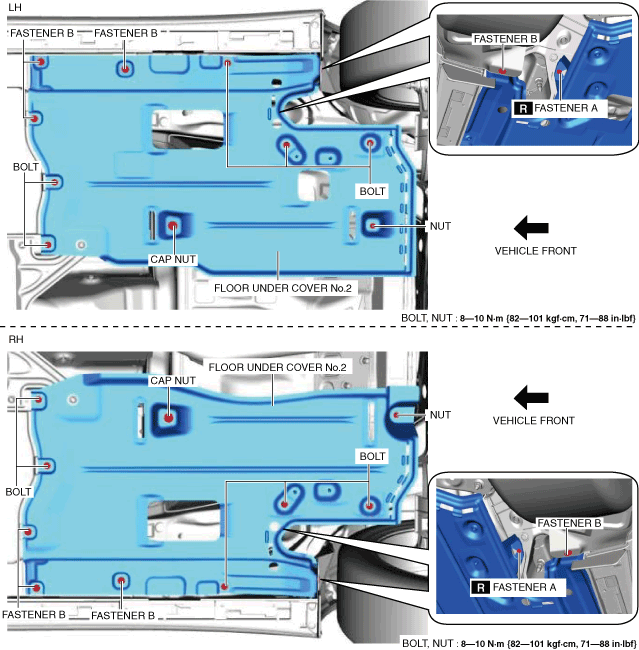

am6zzw00017149

3.  Remove the nut.

4.  Remove fasteners A and B.

5.  Remove the cap nut.

6.  Remove the floor under cover No.2.

7.  When removing the bracket, perform the following procedure:

(1)  Remove fasteners A.

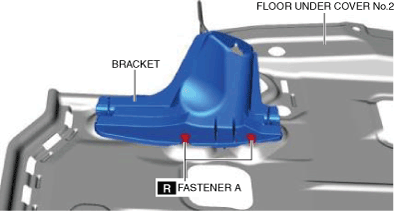

am6xuw00011201

(2)  Remove the bracket.

8.  Install in the reverse order of removal.

Floor Under Cover No.3

1.  Remove the bolts.

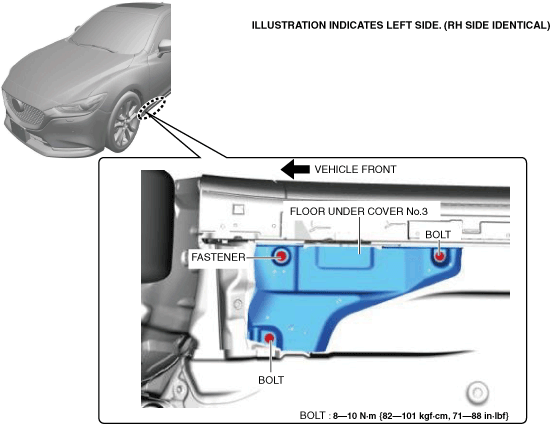

am6zzw00017150

2.  Remove the fastener.

3.  Remove the floor under cover No.3.

4.  Install in the reverse order of removal.
