UPPER PANEL DISASSEMBLY/ASSEMBLY

id091700607100

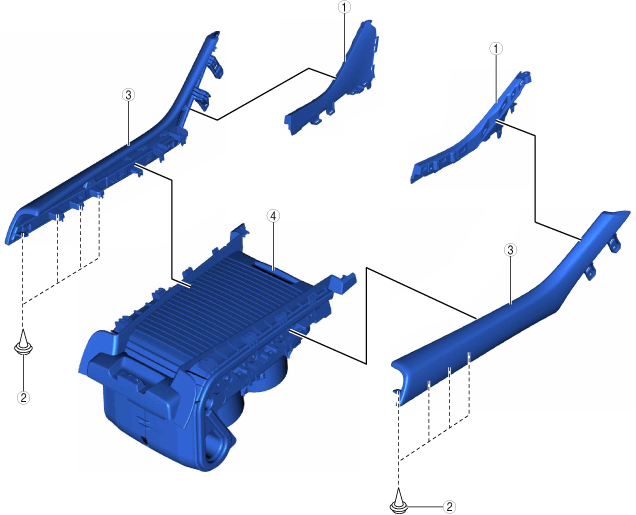

1.  Disassemble in the order indicated in the table.

am6xuw00010982

1	Side cover
2	Screw
3	Console side panel No.2
4	Cup holder component

2.  Assemble in the reverse order of disassembly.
