AUDIO PANEL REMOVAL/INSTALLATION

id091700607600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the meter hood cover. (See METER HOOD COVER REMOVAL/INSTALLATION.)

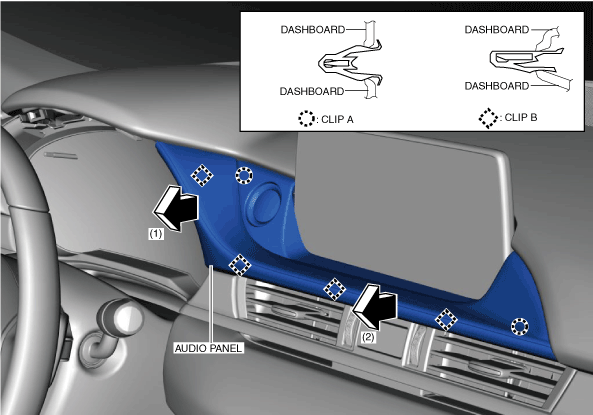

3.  Move the audio panel in the order of arrows (1), (2) shown in the figure, and detach the clips A and clip B.

am6xuw00010983

4.  Disconnect the push button start connector.

5.  Install in the reverse order of removal.
