GLOVE COMPARTMENT REMOVAL/INSTALLATION

id091700800700

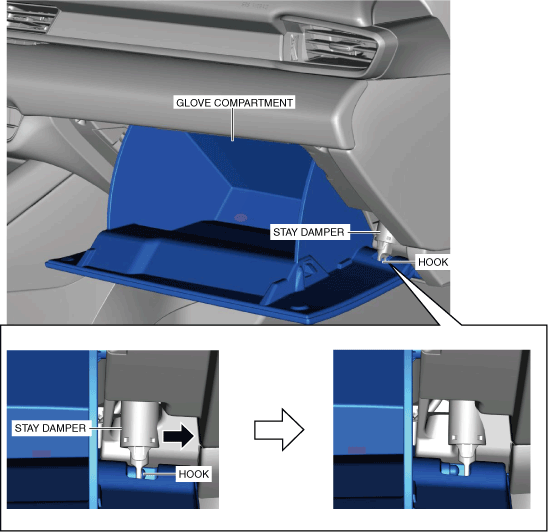

1.  Pull the stay damper in the direction of the arrow shown in the figure and remove the hook.

Caution

•  If the glove compartment is closed without being joined to the stay damper, the stay damper may be damaged. Verify that the stay damper is joined to the glove compartment before closing the glove compartment.

am6xuw00010984

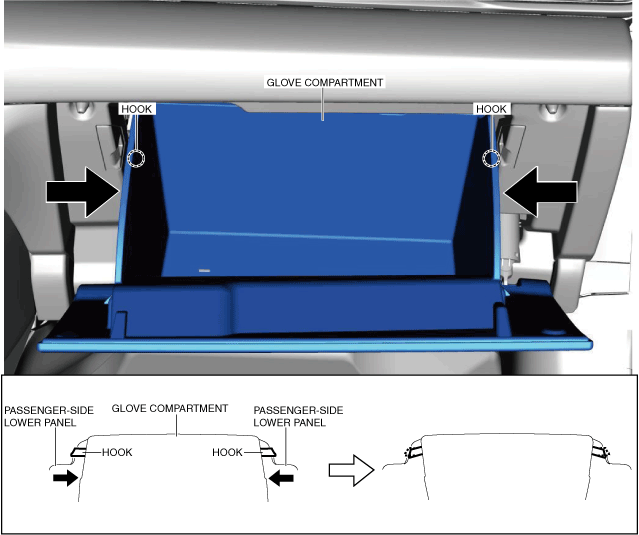

2.  Press both ends of the glove compartment in the directions of the arrows shown in the figure and detach the hooks.

am6xuw00010985

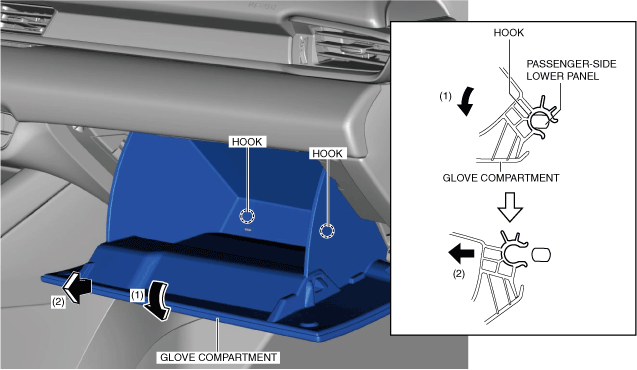

3.  Lower the glove compartment in the direction of arrow (1) shown in the figure, pull it up in the direction of arrow (2), and remove it while detaching the hooks.

am6xuw00010986

4.  Install in the reverse order of removal.
