REAR SCUFF PLATE REMOVAL/INSTALLATION

id091700801500

Rear Scuff Plate (Inner)

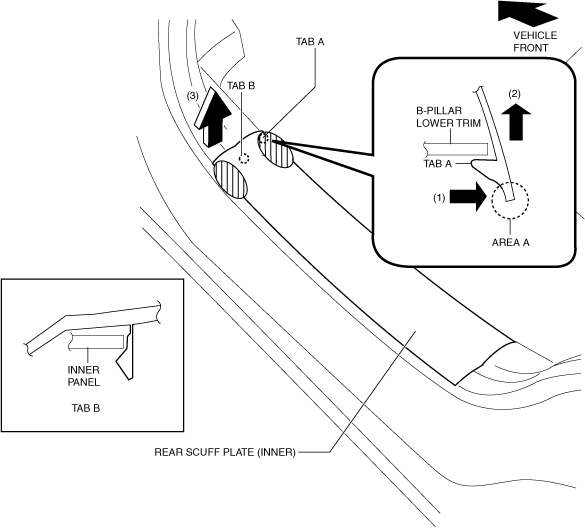

1.  Hold area A shown in the figure, open the rear scuff plate (inner) in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the rear scuff plate (inner) from the B-pillar lower trim.

am6xuw00011795

2.  Hold the shaded area shown in the figure, move the rear scuff plate (inner) in the direction of arrow (3), and detach tab B of the rear scuff plate (inner) from the inner panel.

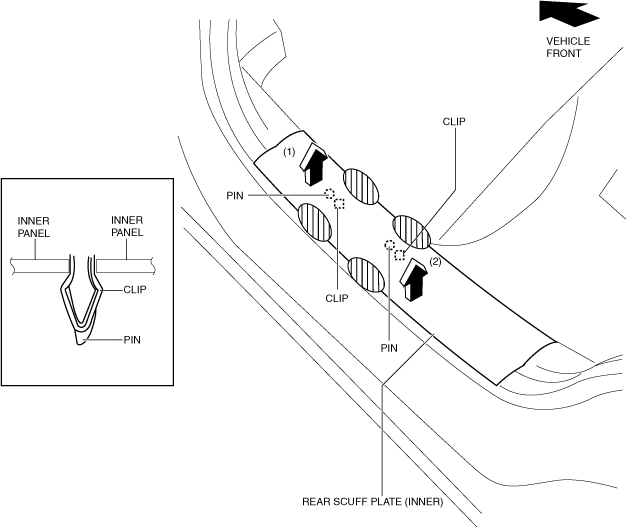

3.  Hold the shaded area shown in the figure, move the rear scuff plate (inner) in the direction of arrow (1), detach the clips from the inner plate, and pull out the pins.

am6xuw00011796

4.  Hold the shaded area shown in the figure, move the rear scuff plate (inner) in the direction of arrow (2), detach the clips from the inner panel, and pull out the pins.

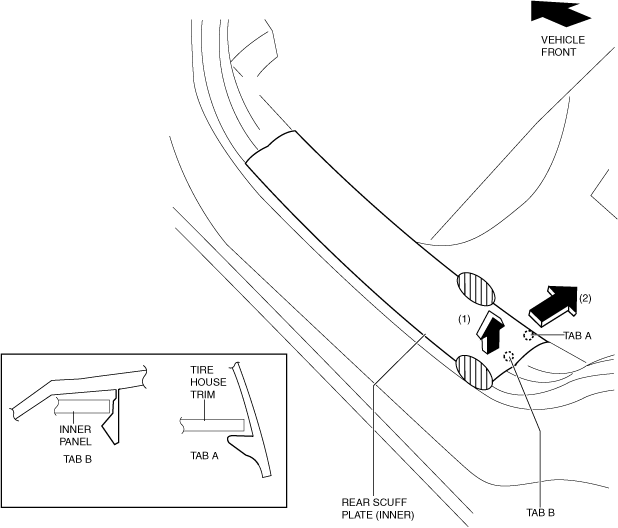

5.  Hold the shaded area shown in the figure, move the rear scuff plate (inner) in the direction of arrow (1) and detach tab A of the rear scuff plate (inner) from the tire house trim.

am6xuw00011797

6.  Move the rear scuff plate (inner) in the direction of arrow (2) shown in the figure and detach tab B of the rear scuff plate (inner) from the inner panel.

7.  Remove the rear scuff plate (inner).

8.  Install in the reverse order of removal.

Rear Scuff Plate (Outer)

Removal

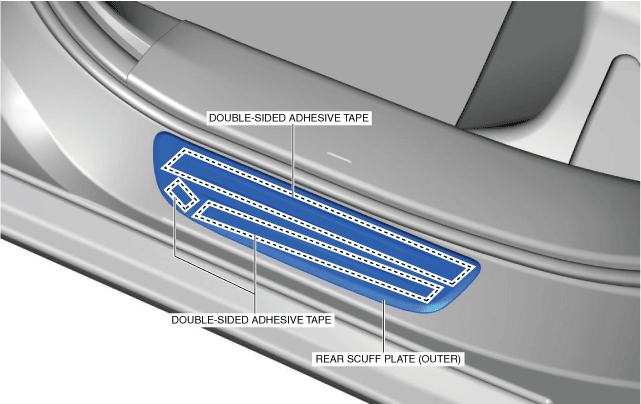

1.  Remove the rear scuff plate (outer) while peeling off the double-sided adhesive tape in the positions shown in the figure.

am6xuw00011798

Installation

1.  Degrease and clean the installation surface of the rear scuff plate (outer).

2.  Heat the installation surface of the rear scuff plate (outer) to approx. 15°C {27°F} to 40°C {72°F} using a heat gun.

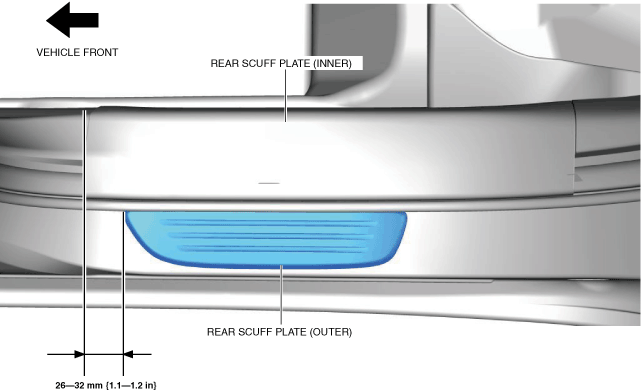

3.  Install the rear scuff plate (outer) to the position shown in the figure.

am6xuw00011799
