DECORATION PANEL REMOVAL/INSTALLATION

id091700806600

Driver-side

1.  Remove the driver-side decoration panel in the direction of the arrow shown in the figure while detaching the clips.

am6zzw00016827

2.  Install in the reverse order of removal.

Passenger-side

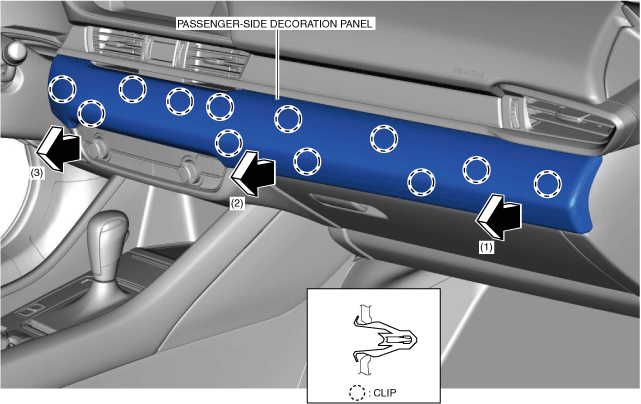

1.  Move the passenger-side decoration panel in the order of arrows (1), (2), and (3) shown in the figure, and remove it while detaching the clips.

am6zzw00016828

2.  Remove the passenger-side decoration panel.

3.  Install in the reverse order of removal.
