LICENSE PLATE LIGHT

id091800012100

Purpose

• The license plate lights shine light on the license plate during nighttime driving.

Function

• The front body control module (FBCM) turns the license plate light on based on the TNS (parking lights) signal sent via CAN communication from the start stop unit.

Structure/Construction

• The license plate lights are installed to the trunk lid (4SD)/liftgate (WGN).

• LED has been adopted for the license plate light.

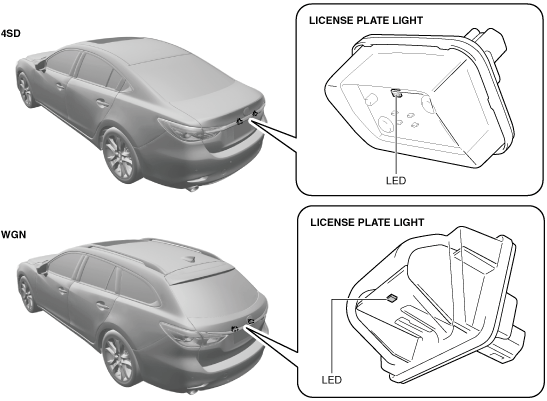

am6zzn00005444

Operation

1. When the light switch is moved to the TNS (parking lights) or HEAD position, the start stop unit detects (1) a TNS (parking lights) signal.

2. The start stop unit sends (2) the TNS (parking lights) signal to the front body control module (FBCM) via CAN communication.

3. When the front body control module (FBCM) receives the TNS (parking lights) signal, it turns (3) the TNS relay on.

4. When the TNS relay turns on, the license plate light is illuminated (4).

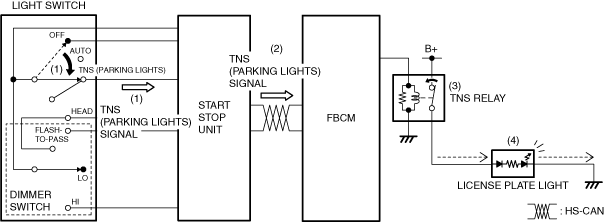

am6xun00003879

Fail-safe

• Not applicable
