REAR MAP LIGHT

id091800112700

Purpose

• The rear map lights shine light at the center of the vehicle interior.

Function

• The rear body control module (RBCM) detects the on/off of the rear map light switch and controls the on/off of the rear map light.

• The rear map lights illuminate according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the room light switch for front map light is in the DOOR position. (Bulb type)

• The rear map lights illuminate according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the interior light door open interlock switch for front map light is on. (LED type)

Structure/Construction

• A bulb type or LED type is available for the rear map lights.

• The rear map lights are assembled to the headliner.

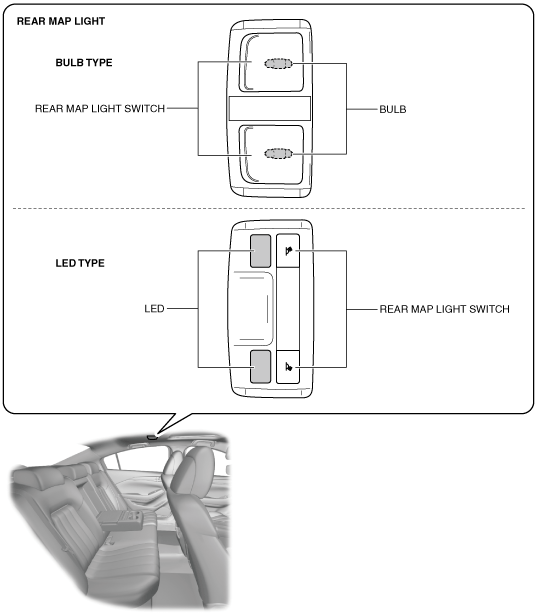

am6zzn00005472

Operation

Note

• When the rear body control module (RBCM) receives a lock signal on the remote transmitter with the ignition switched off and all doors/trunk lid (4SD)/liftgate (WGN) closed, it automatically turns the rear map light off.

Bulb type

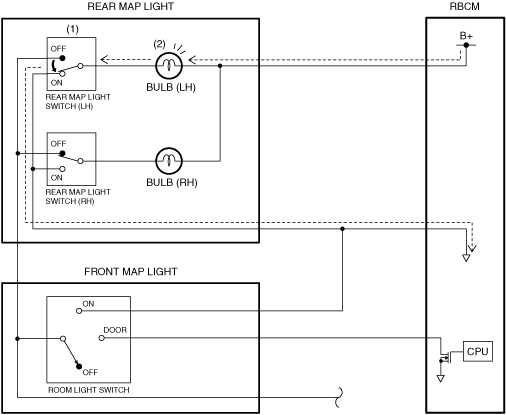

Rear map light switch operation

1. When the rear map light switch is on (1), the rear map light turns on (2).

am6xun00003932

Room light switch for front map light operation (ON position)

1. When the room light switch for the front map light is in the ON position (1), the rear map lights turn on (2).

am6xun00003933

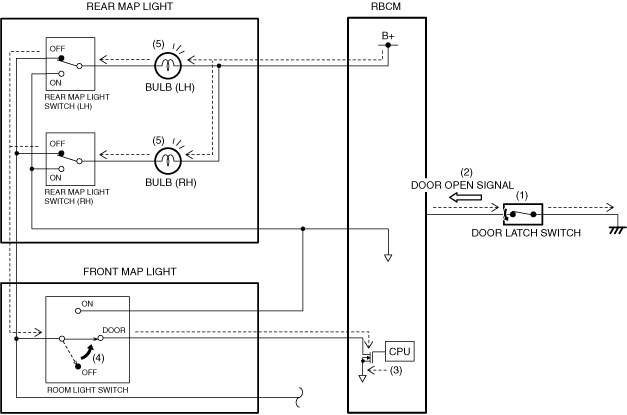

Room light switch for front map light operation (DOOR position)

1. When any door is opened (1), the rear body control module (RBCM) detects (2) a door open signal.

2. When the rear body control module (RBCM) detects the door open signal, it turns the transistor on (3).

3. When the transistor is on with room light switch for front map light at the DOOR position (4), the rear map lights turn on (5).

Note

• When the room light switch for front map light is in the DOOR position, the room light control system controls the timing for turning the rear map light on and off. For details, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)

am6xun00003934

LED type

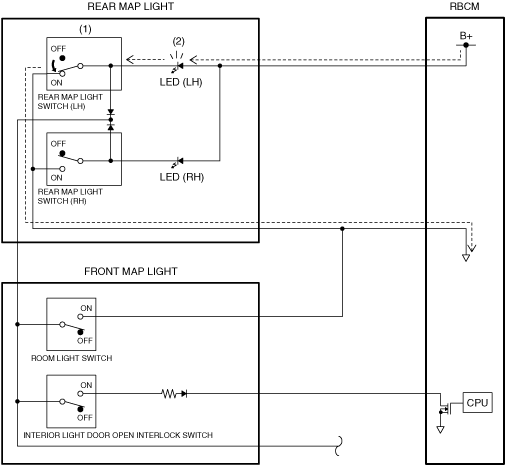

Rear map light switch operation

1. When the rear map light switch is on (1), the rear map light turns on (2).

am6xun00003935

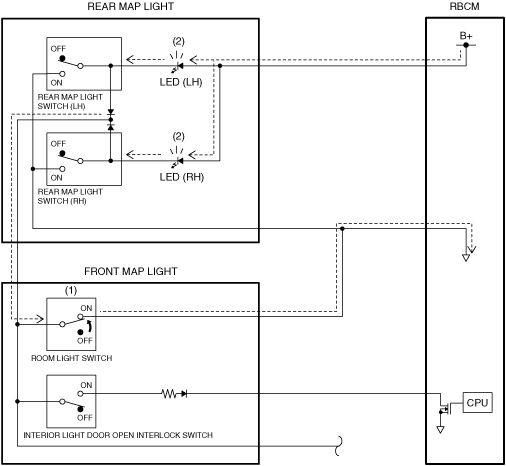

Room light switch for front map light operation

1. When the room light switch for the front map light is on (1), the rear map lights turn on (2).

am6xun00003936

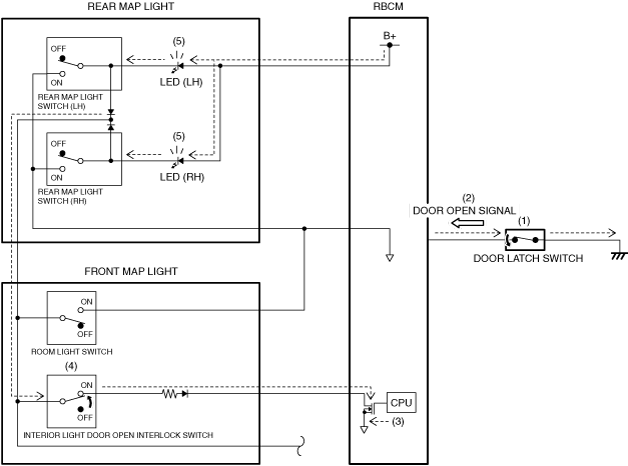

Interior light door open interlock switch for front map light operation

1. When any door is opened (1), the rear body control module (RBCM) detects (2) a door open signal.

2. When the rear body control module (RBCM) detects the door open signal, it turns the transistor on (3).

3. When the transistor is on with interior light door open interlock switch for front map light on (4), the rear map lights turn on (5).

Note

• When the interior light door open interlock switch for front map light is on, the room light control system controls the timing for turning the rear map light on and off. For details, refer to the [ROOM LIGHT CONTROL SYSTEM]. (See ROOM LIGHT CONTROL SYSTEM.)

am6xun00003937

Fail-safe

• Not applicable
