TRUNK LID LIGHT (4SD)/LIFTGATE LIGHT (WGN)

id091800400300

Purpose

―  Back-up lights: Signals that the vehicle is backing up.

―  Taillights: Signals the presence of the vehicle during nighttime. (With taillight)

―  Rear fog lights: The vehicle's presence is signaled to vehicles at the rear by the illumination of the rear fog light during poor weather conditions such as dense fog. (With rear fog light)

Function

Operation part	Related light
•  TCM (selector lever) (ATX) •  Back-up light switch (shift lever) (MTX)	Back-up light
Light switch (TNS (parking lights))	Taillight
Rear fog light switch (light switch)	Rear fog light

Structure/Construction

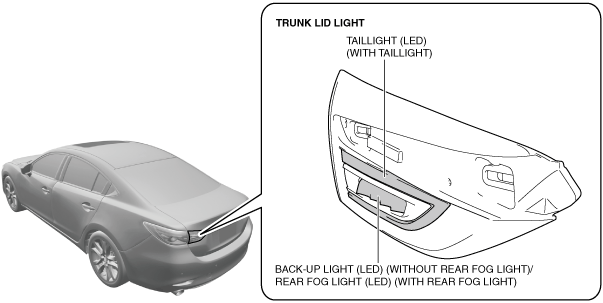

4SD

•  The trunk lid light is integrated with the following parts.

―  Back-up light (LED) (without rear fog light)

―  Taillight (LED) (with taillight)

―  Rear fog light (LED) (with rear fog light)

Note

•  Fogging or condensation may occur inside the trunk lid lights, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the trunk lid lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the trunk lid lights rises after the back-up light is illuminated and a period of time has elapsed.

am6zzn00005474

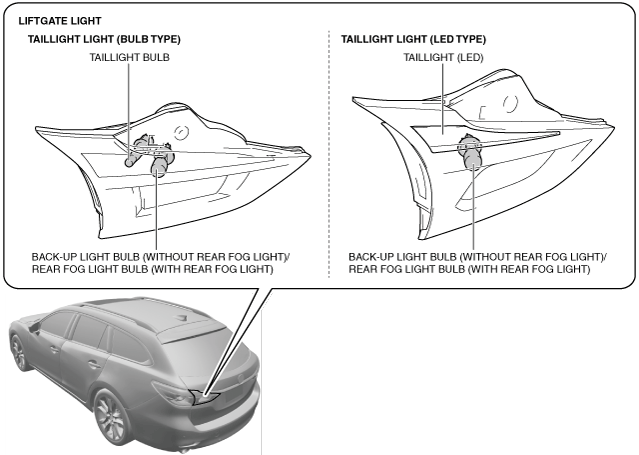

WGN

•  The liftgate light groups the following parts.

―  Back-up light bulb (without rear fog light)

―  Rear fog light bulb (with rear fog light)

―  Taillight bulb (with taillight (bulb type))

•  The liftgate light is integrated with the taillight (LED). (With taillight (LED type))

Note

•  Fogging or condensation may occur inside the liftgate lights, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the liftgate lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the liftgate lights rises after the back-up light is illuminated and a period of time has elapsed.

am6zzn00005475

Operation

Back-up light

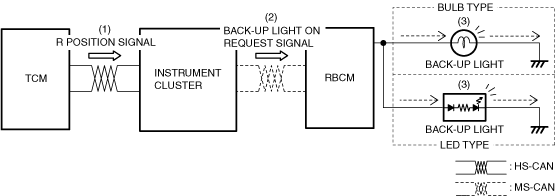

ATX

1.  When the selector lever is in the R position with the ignition switched ON (engine off or on), the TCM sends (1) an R position signal to the instrument cluster via CAN communication.

2.  When the instrument cluster receives the R position signal, it sends (2) a back-up light on request signal to the rear body control module (RBCM).

3.  When the rear body control module (RBCM) receives the back-up light on request signal, it turns the back-up light on (3).

am6zzn00005476

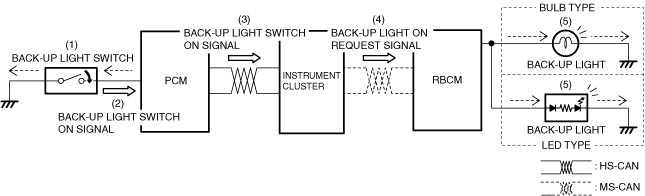

MTX

1.  When the shift lever is operated to the reverse position, the back-up light switch is turned on (1).

2.  When the back-up light switch is turned on, the PCM detects (2) a back-up light switch on signal.

3.  The PCM sends (3) the back-up light switch on signal to the instrument cluster via CAN communication.

4.  When the instrument cluster receives the back-up light switch on signal, it sends (4) a back-up light on request signal to the rear body control module (RBCM).

5.  When the rear body control module (RBCM) receives the back-up light on request signal, it turns the back-up light on (5).

am6zzn00005477

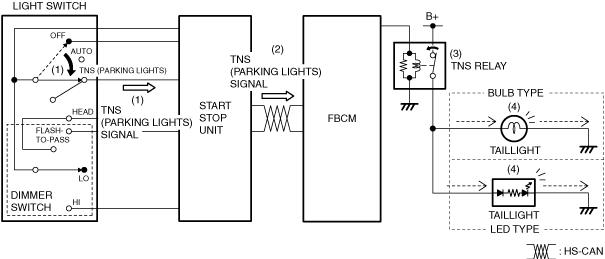

Taillight (with taillight)

1.  When the light switch is moved to the TNS (parking lights) or HEAD position, the start stop unit detects (1) a TNS (parking lights) signal.

2.  The start stop unit sends (2) the TNS (parking lights) signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the TNS (parking lights) signal, it turns (3) the TNS relay on.

4.  When the TNS relay turns on, the taillight is illuminated (4).

am6zzn00005478

Rear fog light (with rear fog light)

Operation condition

•  Ignition switched ON (engine off or on)

•  Headlight LO is illuminated

•  Fog light switch position: R.FOG

Operation

1.  When the fog light switch is moved to the R.FOG position, the start stop unit detects (1) the rear fog light signal.

2.  The start stop unit sends (2) the rear fog light signal to the front body control module (FBCM) via CAN communication.

3.  When the operation conditions are met, the front body control module (FBCM) sends (3) a rear fog light on request signal to the rear body control module (RBCM) via the instrument cluster.

4.  When the rear body control module (RBCM) receives the rear fog light on request signal, it turns the rear fog light on (4).

am6zzn00005479
