REAR FOG LIGHT SWITCH INSPECTION

id091800804700

1.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

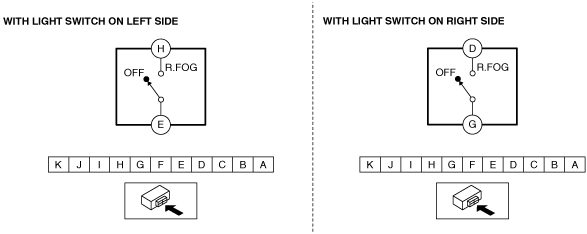

2.  Verify that the continuity between the light switch terminals is as indicated in the table.

am6zzw00008078

am6zzw00008079

•  If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)
