TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

id091800806200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

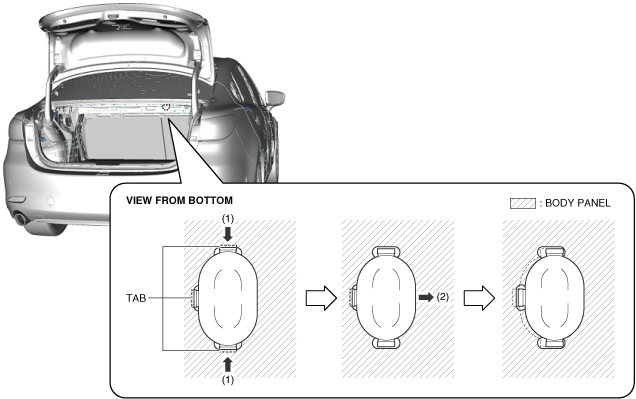

2.  While pressing the lens in the direction of the arrows (1) shown in the figure, move the lens in the direction of the arrow (2) shown in the figure to detach the lens tabs from the body panel.

am6xuw00011317

3.  Remove the lens.

am6xuw00011318

4.  Remove the trunk compartment light bulb.

5.  Install in the reverse order of removal.
