FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY

id091800816000

1.  Remove the front combination light. ( See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

2.  Disassemble in the order shown in the figure.

3.  Assemble in the reverse order of disassembly.

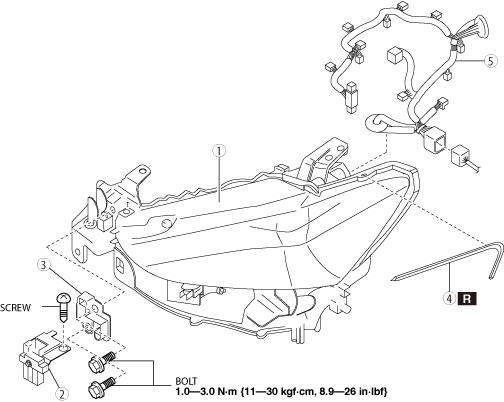

am6zzw00018588

1	Front combination light
2	Bracket A
3	Bracket B
4	Protector (See Protector Installation Note.)
5	Short cord

Protector Installation Note

1.  Peel off the adhesive tape backing of the protector in range (1) shown in the figure.

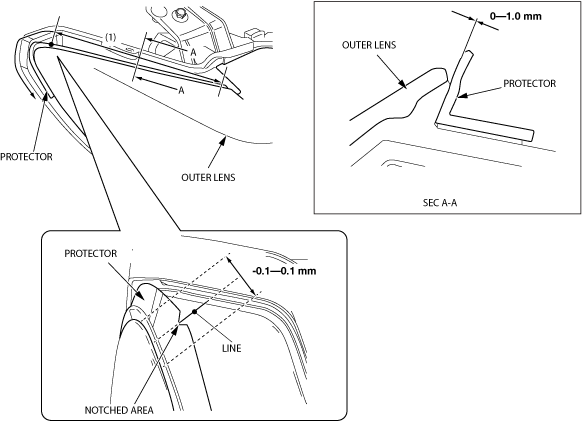

am6zzw00018589

2.  Align the notched area of the protector with the outer lens line as shown in the figure.

3.  Adhere the protector along the outer lens surface.

4.  Peel off all of the adhesive tape backing of the protector.

5.  Adhere the protector along the outer lens surface.
