POCKET LIGHT REMOVAL/INSTALLATION

id091800818200

Front

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

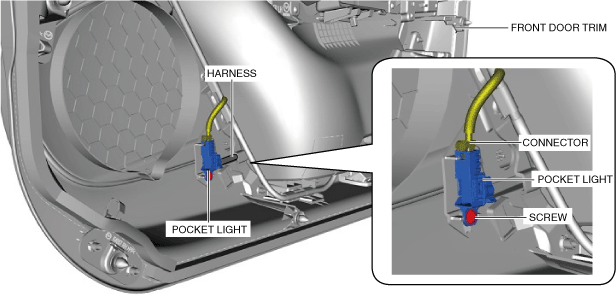

4.  Disconnect the harness.

am6xuw00011374

5.  Disconnect the connector.

6.  Remove the screw.

7.  Remove the pocket light.

8.  Install in the reverse order of removal.

Rear

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

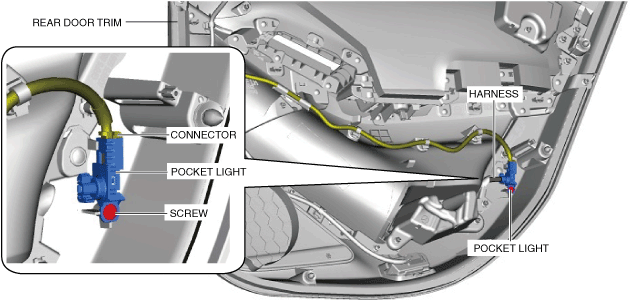

4.  Disconnect the harness.

am6xuw00011375

5.  Disconnect the connector.

6.  Remove the screw.

7.  Remove the pocket light.

8.  Install in the reverse order of removal.
