WIPER/WASHER SYSTEM
id091900000600
Outline
• The following wiper/washer system has been adopted.
-
― Windshield wiper/washer system
― Rear wiper/washer system (WGN)
― Auto wiper system (with auto wiper system)
― Washer fluid level warning system (with headlight cleaner system)
― Headlight cleaner system (with headlight cleaner system)
Specification
• A windshield wiper/washer system with continuous (low/high), auto-stop, one-touch wiper, intermittent wiper (without auto wiper system), and a windshield washer and synchronized washer have been adopted.
-
― CAN communication has been adopted for the windshield wiper/washer system.
― Windshield washer nozzles have been adopted in which the area where the washer fluid is sprayed can be adjusted.
• A rear wiper/washer system with continuous, auto-stop, and intermittent wiper, and synchronized washer have been adopted. (WGN)
-
― CAN communication has been adopted to the rear wiper/washer system.
― Rear washer nozzle has been adopted in which the area where the washer fluid is sprayed can be adjusted.
• An auto wiper system has been adopted which enables fully automatic windshield wiper operation. (With auto wiper system)
-
― CAN communication has been adopted for the auto wiper system.
― A rain sensor integrated with the lens has been adopted which aggregates infrared light to detect the amount of rainfall.
― Auto wiper system personalization features have been adopted.
• The washer fluid-level sensor is located on the washer tank. (With washer fluid level warning system)
• A pop-up type headlight cleaner has been adopted. (With headlight cleaner system)
• Washer tank capacity
-
― 2.2 L {2.3 US qt, 1.9 Imp qt} (without washer fluid level warning system and headlight cleaner system)
― 4.2 L {4.4 US qt, 3.7 Imp qt} (with washer fluid level warning system or headlight cleaner system)
Structure/Construction

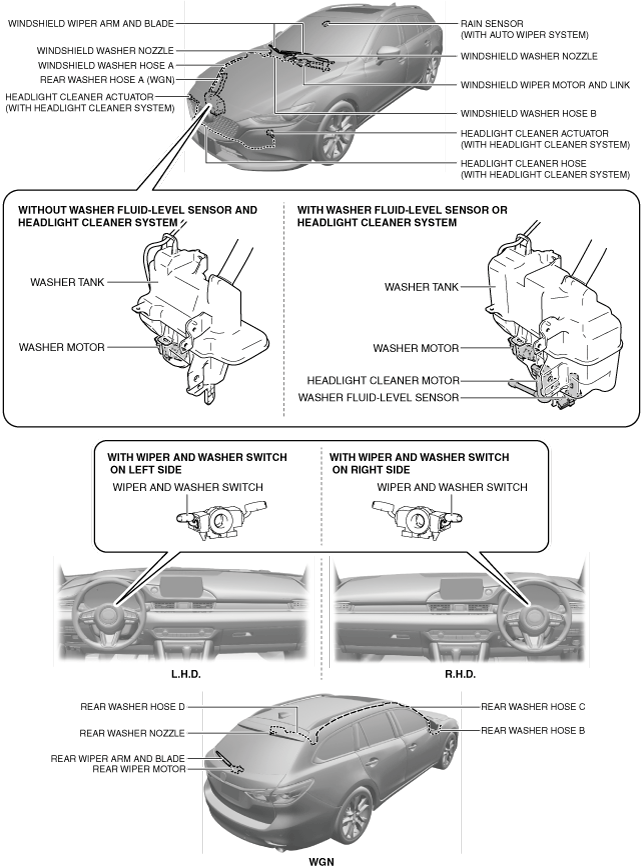

System structure
