REAR WIPER MOTOR REMOVAL/INSTALLATION

id091900801400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

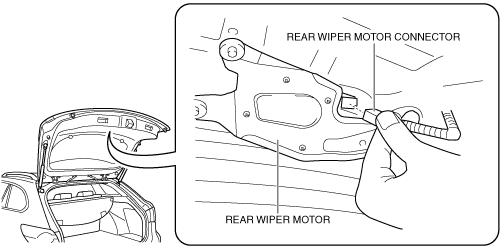

3.  Remove the rear wiper motor connector.

am6zzw00016635

4.  Remove bolts. (See Rear Wiper Motor Installation Note.)

am6zzw00016636

5.  Pull out the rear wiper motor from the outer bushing hole and remove it.

am6zzw00016637

6.  Press in the outer bushing from the outside of the liftgate in the direction of the arrow shown in the figure.

am6zzw00016638

7.  Detach the liftgate and outer bushing while pressing the outer bushing in the direction of the arrows shown in the figure, pull the outer bushing from the inside of the liftgate in the direction of the arrow, and remove it.

am6zzw00016639

8.  Install in the reverse order of removal.

Rear Wiper Motor Installation Note

1.  When installing the rear wiper motor to the liftgate, temporarily tighten bolt (2) and install bolts in the order of (1), (2), and (3).

am6zzw00016640
