AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION

id092000031500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

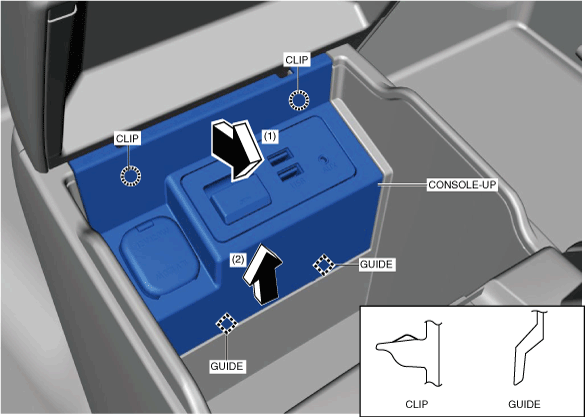

2.  Using a remover tool, move the console-up in the order of arrows (1), (2) shown in the figure, and detach the clips and guides.

am6xuw00011880

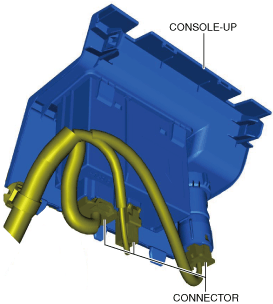

3.  Disconnect the connectors.

am6xuw00011881

4.  Remove the console-up.

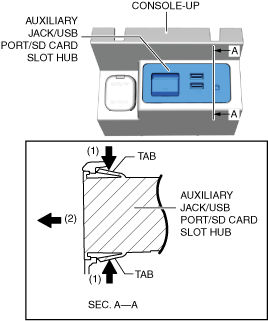

5.  While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the console-up.

am6zzw00017177

6.  Remove the auxiliary jack/USB port/SD card slot hub.

7.  Install in the reverse order of removal.
