DVD/CD PLAYER REMOVAL

id092000035200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

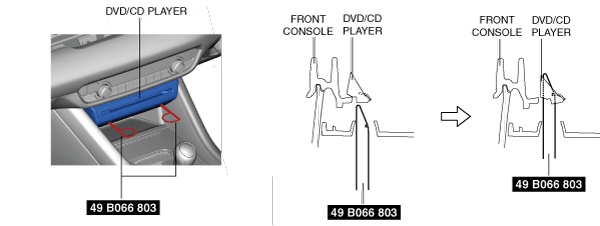

2.  Insert the SSTs (removing tool) into the positions shown in the figure and disengage the DVD/CD player from the front console.

am6zzw00016496

3.  Pull the SSTs (removing tool) in the direction shown in the figure and remove the DVD/CD player from the front console.

am6zzw00016497

4.  Disconnect the connector.

am6zzw00016498

5.  Remove the DVD/CD player.

6.  While pulling the SSTs (removing tool) in the direction of arrow (2) shown in the figure, press the DVD/CD player spring in the direction of arrow (1) shown in the figure.

am6zzw00017949
