AUDIO AMPLIFIER REMOVAL/INSTALLATION

id092000801100

1.  Slide the seat rearward (RH).

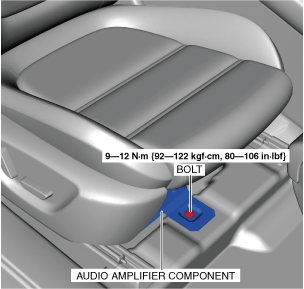

2.  Remove the bolt.

am6xuw00011030

3.  Slide the seat forward (RH).

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

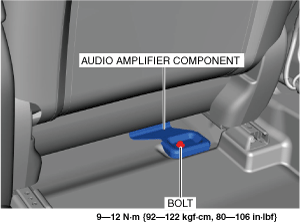

5.  Remove the bolt.

am6xuw00011031

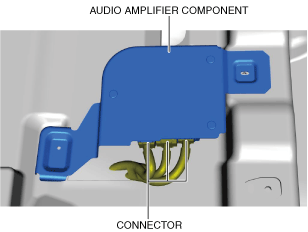

6.  Disconnect the connectors.

am6xuw00011032

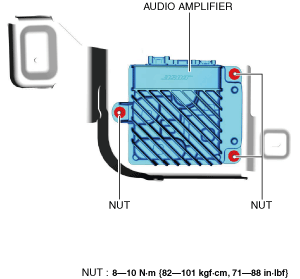

7.  Remove the nuts.

am6xuw00011033

8.  Remove the audio amplifier.

9.  Install in the reverse order of removal.
