MICROPHONE REMOVAL/INSTALLATION

id092000801400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

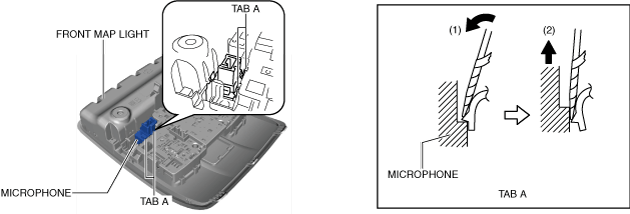

3.  While pressing tabs A of the microphone in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the microphone in the direction of the arrow (2) shown in the figure to detach tabs A of the microphone from the front map light.

am6xuw00011883

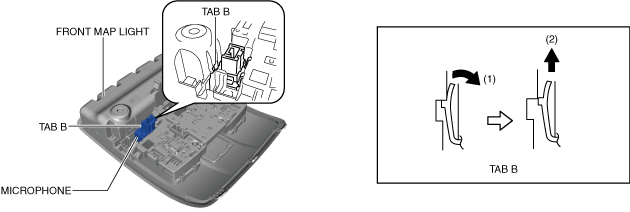

4.  While pulling tab B of the microphone in the direction of the arrow (1) shown in the figure, pull the microphone in the direction of the arrow (2) shown in the figure to detach tab B of the microphone from the front map light.

am6xuw00011884

5.  Remove the microphone.

6.  Install in the reverse order of removal.
