AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION

id092000811500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Using a remover tool, move the console-up in the order of arrows (1), (2) shown in the figure, and detach the clips and guides.

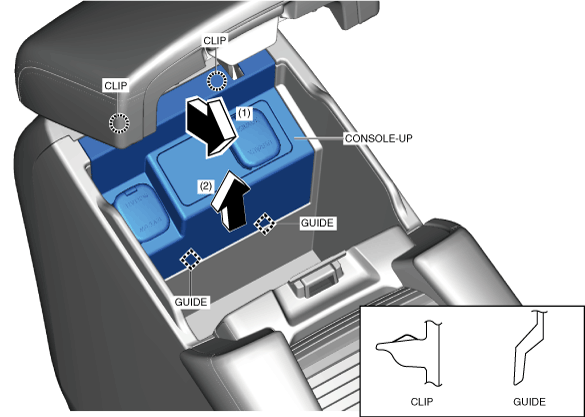

am6zzw00017178

3.  Disconnect the connectors.

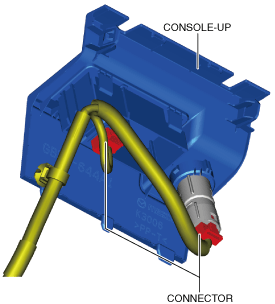

am6zzw00017179

4.  Remove the console-up.

5.  While pressing the tabs of the auxiliary jack/USB port in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port from the console-up.

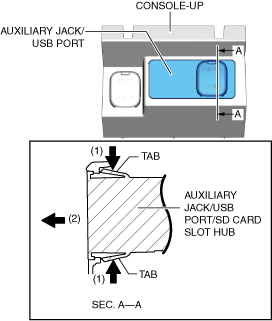

am6zzw00017180

6.  Remove the auxiliary jack/USB port.

7.  Install in the reverse order of removal.
