CD PLAYER [WITH CENTER DISPLAY]

id0920zz113700


Purpose, Function

•  The CD player sends the inserted CD file information to the connectivity master unit (CMU), and an audio signal to the tuner and amp unit (TAU).

Specification

Type

Playback function file
Music/MP3/WMA/AAC CD player
•  Music data (CD-DA)
•  MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) files


Construction

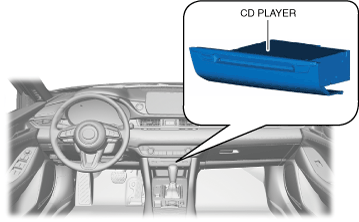

•  The CD player is located in the front console.
am6zzn00005875

Input/output signal table

Terminal

Signal
A
Ground
B
—
C
—
D
Illumination power supply (-)
F
—
G
Local MS-CAN_H
H
Local MS-CAN_L
J
—
L
CD audio output LH (+)
N
CD audio output LH (-)
P
CD audio output RH (+)
R
CD audio output RH (-)
S
—
T
—
U
—
V
—
W
TNS signal input
X
—
Y
ACC
Z
B+


Operation

•  For the CD player operation, refer to the [ENTERTAINMENT SYSTEM]. (See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)

Fail-safe

•  Not applicable
